Taillight Relay Circuit [11/2015 - 12/2018]: Wiring Diagram

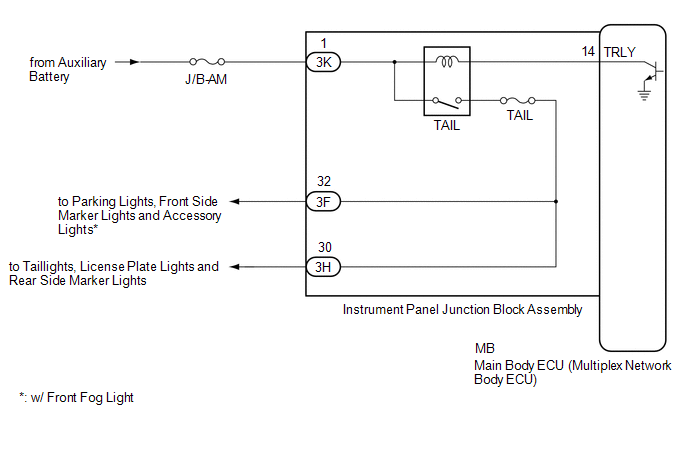

Fig 1: Taillight Relay Circuit Diagram

GTY565394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
