Daytime Running Light Relay Circuit [07/2020 -]: Wiring Diagram

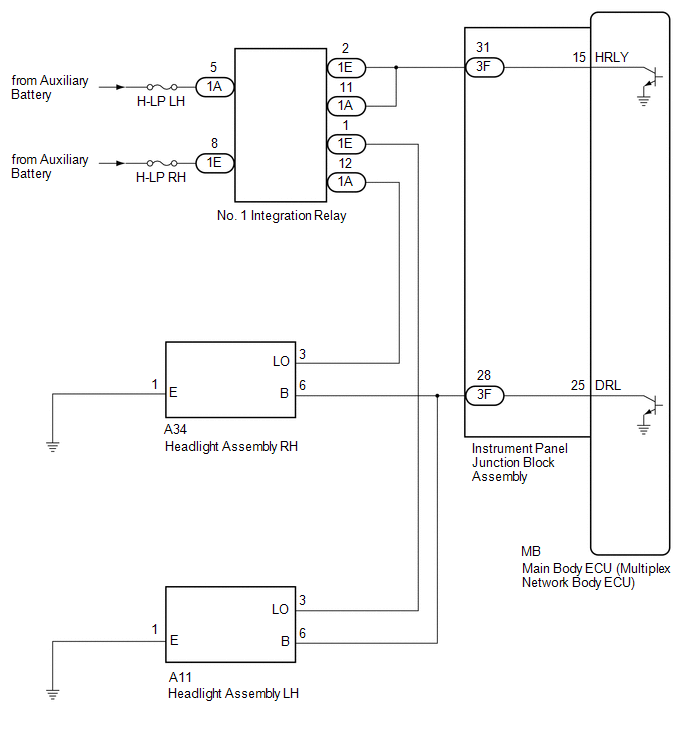

Fig 1: Daytime Running Light Relay Circuit Diagram

GTY982052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
