Components [08/2019 -]
WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 5) [08/2019 -]
| Callout | Description | Callout | Description |
| *1 | ENGINE ASSEMBLY WITH TRANSAXLE | *2 | FRONT BUMPER EXTENSION SUB-ASSEMBLY RH |
| *3 | FRONT BUMPER EXTENSION SUB-ASSEMBLY LH | *4 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH |
| *5 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH | *6 | NO. 2 ENGINE MOUNTING STAY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

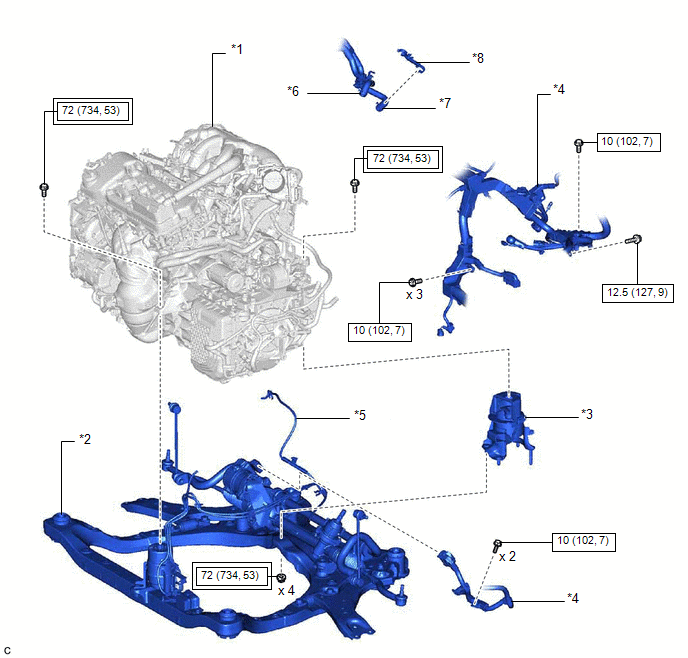

Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 5) [08/2019 -]
| Callout | Description | Callout | Description |
| *1 | ENGINE ASSEMBLY WITH TRANSAXLE | *2 | FRONT FRAME ASSEMBLY |
| *3 | REAR ENGINE MOUNTING INSULATOR | *4 | WIRE HARNESS |
| *5 | VACUUM HOSE | *6 | NO. 1 WATER BY-PASS HOSE |
| *7 | WATER BY-PASS HOSE ASSEMBLY | *8 | TRANSMISSION BREATHER CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

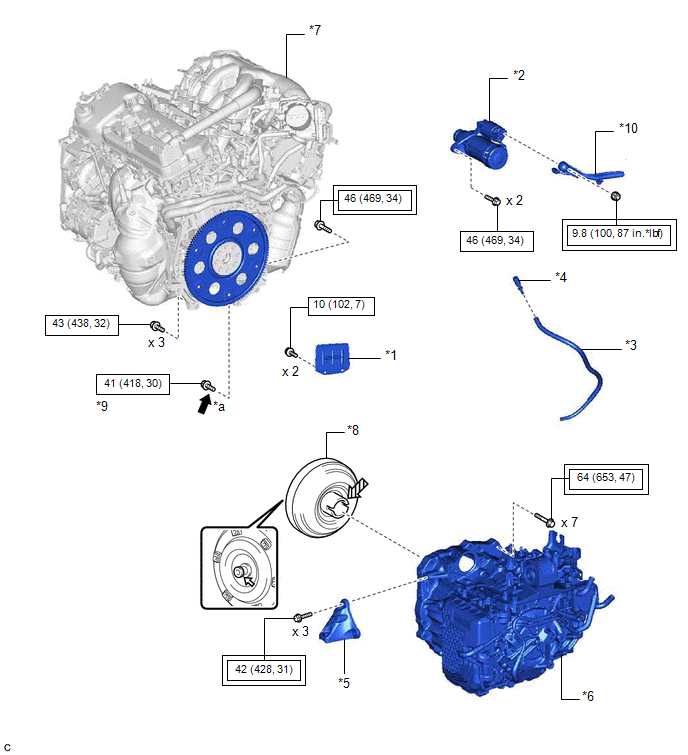

Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 5) [08/2019 -]
| Callout | Description | Callout | Description |
| *1 | FLYWHEEL HOUSING UNDER COVER | *2 | STARTER ASSEMBLY |
| *3 | BREATHER PLUG HOSE | *4 | BREATHER PLUG SUB-ASSEMBLY |
| *5 | FRONT ENGINE MOUNTING BRACKET | *6 | AUTOMATIC TRANSAXLE ASSEMBLY |
| *7 | ENGINE ASSEMBLY | *8 | TORQUE CONVERTER ASSEMBLY |
| *9 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT | *10 | WIRE HARNESS |
| *a | BLACK COLOR: x 1 SILVER COLOR: x 5 |
- | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | Toyota Genuine Clutch Spline Grease or equivalent | ||
| MP grease | * | Precoated part |

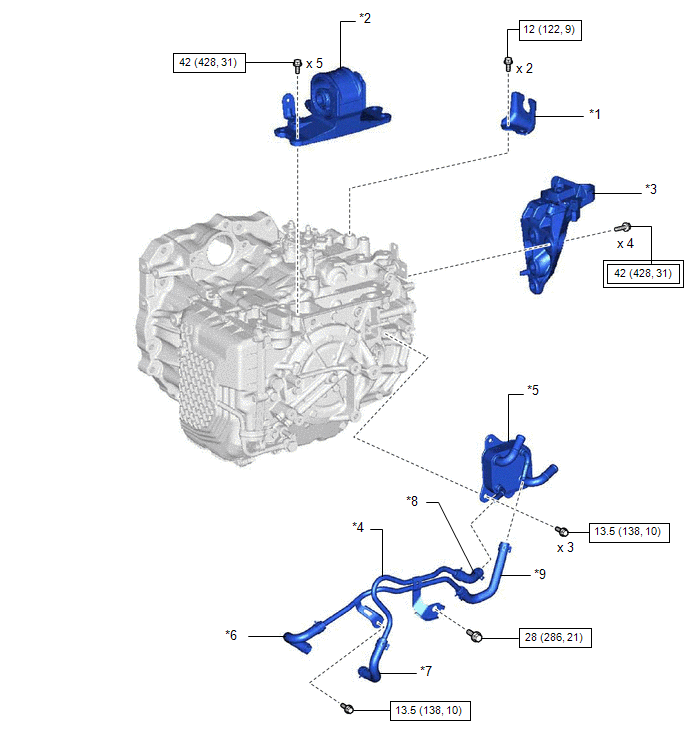

Fig 4: Automatic Transaxle Assembly Replacement Components With Torque Specifications (4 Of 5) [08/2019 -]
| Callout | Description | Callout | Description |
| *1 | NO. 1 TRANSMISSION CONTROL CABLE BRACKET | *2 | ENGINE MOUNTING INSULATOR LH |
| *3 | REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY | *4 | NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE |
| *5 | TRANSMISSION OIL COOLER | *6 | OUTLET NO. 1 OIL COOLER HOSE |
| *7 | INLET NO. 1 OIL COOLER HOSE | *8 | INLET NO. 2 OIL COOLER HOSE |
| *9 | OUTLET NO. 2 OIL COOLER HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
Fig 5: Automatic Transaxle Assembly Replacement Components With Torque Specifications (5 Of 5) [08/2019 -]
| Callout | Description | Callout | Description |
| *1 | WIRE HARNESS CLAMP BRACKET | *2 | TRANSMISSION CASE PLUG ASSEMBLY |
| *3 | AUTOMATIC TRANSMISSION CASE COVER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
