Components [11/2015 -]

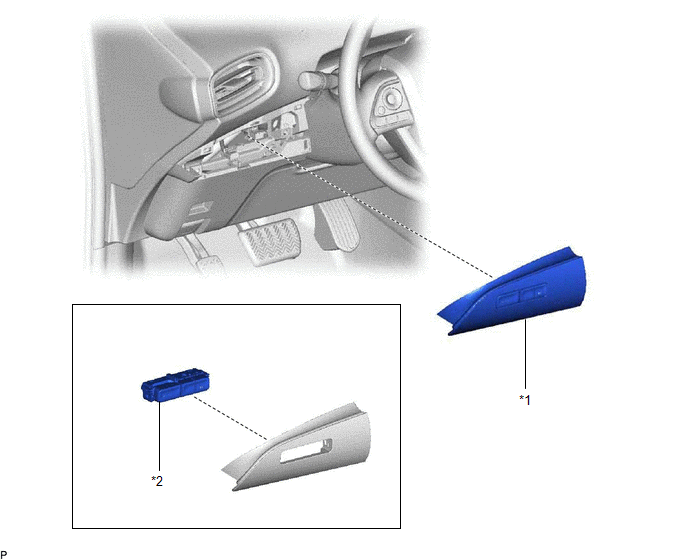

Fig 1: Light Control Rheostat Replacement Components
GTY607160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY *2 LIGHT CONTROL RHEOSTAT (COMBINATION SWITCH ASSEMBLY)
