System Description [08/2016 - 11/2017]

  1. OUTLINE OF COMBINATION METER ASSEMBLY (METER CIRCUIT PLATE)
    GTY603225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Indication Example *b Clock
    *c Shift Selection Indicator Light *d Multi-information Display
    *e Main Display *f Display Area A
    *g Display Area B *h Display Area C
  2. INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY (METER CIRCUIT PLATE)
    1. Warning or Indicator
      Item Condition Input/Output Communication line Signal Component
      Master warning light Comes on/Blinks Input CAN/Direct line Each warning signal Related ECUs
      Door open warning light Comes on Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Back door courtesy switch signal
      Brake warning light / red (malfunction) Comes on Input CAN Brake warning light control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Brake reservoir level warning switch signal
      Driver or front passenger seat belt warning light Comes on/Blinks Input CAN Driver seat belt buckle switch signal Main body ECU (Multiplex network body ECU)
      Parking brake switch signal
      Shift selection P signal Hybrid vehicle control ECU
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Front passenger seat occupant detection status signal Airbag ECU assembly
      Front passenger seat belt buckle switch detection status signal
      Rear seat belt warning light*13 Comes on Input CAN Rear right door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Rear left door courtesy switch signal
      Door lock output factor signal
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Direct line Rear left seat belt buckle switch signal Rear seat inner with center belt assembly LH
      Rear center seat belt buckle switch signal
      Rear right seat belt buckle switch signal Rear seat inner belt assembly RH
      SRS warning light Comes on Input CAN Airbag warning light control request signal Airbag ECU assembly
      Test mode signal Hybrid vehicle control ECU
      Engine coolant temperature hot warning light Comes on/Blinks Input CAN Engine coolant temperature signal ECM
      Direct line Engine coolant temperature sensor signal Engine coolant temperature sensor*10
      Charge warning light Comes on Input CAN Charge warning signal Hybrid vehicle control ECU
      Ready signal
      Engine oil pressure warning light Comes on Input CAN Oil pressure light lighting prohibition signal Hybrid vehicle control ECU
      Direct line Engine oil pressure signal Engine oil pressure switch assembly
      EPS warning light Comes on/Blinks Input CAN EPS warning light request signal Power steering ECU assembly
      Parking brake warning light Comes on Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Security indicator light Blinks Input Direct line Auto alarm condition signal Certification ECU (Smart key ECU assembly)
      MIL (Check engine warning light) Comes on/Blinks Input CAN MIL request signal ECM
      PCS warning light*1 Comes on/Blinks Input CAN PCS indicator display signal Driving support ECU assembly
      Slip indicator light Comes on/Blinks Input CAN Slip indicator light signal Skid control ECU (Brake booster with master cylinder assembly)
      VSC OFF indicator light Comes on Input CAN VSC OFF light signal Skid control ECU (Brake booster with master cylinder assembly)
      ABS warning light Comes on/Blinks Input CAN ABS warning light control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Brake warning light / yellow (minor malfunction) Comes on/Blinks Input CAN ECB warning light control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Tire pressure warning light Comes on/Blinks Input CAN TPMS warning indicator condition 1 signal Main body ECU (Multiplex network body ECU)
      Fuel level warning light Comes on Input Direct line Fuel level signal Fuel sender gauge assembly
      ICS OFF indicator light*2 Comes on/Blinks Input CAN ICS OFF light request signal Clearance warning ECU assembly
      Automatic high beam indicator light*12 Comes on Input CAN Smart beam indicator signal Main body ECU (Multiplex network body ECU)
      Lane departure alert indicator light*3 Comes on Input CAN Indicator display signal Forward recognition camera
      Cruise control indicator light*4 Comes on Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Cruise control indicator light (Constant speed control mode)*5 Comes on Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Cruise control indicator light (Vehicle-to-vehicle distance control mode)*5 Comes on Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      High beam indicator light Comes on Input CAN High beam headlight request signal Main body ECU (Multiplex network body ECU)
      Ready indicator light Comes on/Blinks Input CAN Ready signal Hybrid vehicle control ECU
      STA signal
      Tail indicator light*6 Comes on Input CAN Taillight request signal Main body ECU (Multiplex network body ECU)
      Head indicator light*7 Comes on Input CAN Low beam headlight request signal Main body ECU (Multiplex network body ECU)
      Front fog indicator light*8 Comes on Input CAN Front fog light request signal Main body ECU (Multiplex network body ECU)
      Turn indicator light Blinks Input CAN Flasher request signal Main body ECU (Multiplex network body ECU)
      Hazard light blinking flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Hazard light activation request signal DCM (Telematics transceiver)*11
      Direct line LH turn signal switch signal Headlight dimmer switch assembly
      RH turn signal switch signal
      Hazard warning switch signal Hazard warning signal switch assembly
      - Output CAN Turn light state signal Related ECUs
      Hazard switch state signal
      Direct line LH turn signal switch signal Each turn signal light
      RH turn signal switch signal
      Hazard warning switch signal
      Cruise SET indicator light Comes on Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Clearance sonar indicator light*2 Comes on Input CAN CLSO main switch indicator turn ON signal Clearance warning ECU assembly
      Passenger airbag OFF indicator light Comes on Input Direct line Passenger airbag OFF indicator light request signal Airbag ECU assembly
      Passenger airbag ON indicator light Comes on Input Direct line Passenger airbag ON indicator light request signal Airbag ECU assembly
      BSM indicator light*9 Comes on Input CAN BSD main switch signal Blind spot monitor sensor LH
      Steering control indicator light*3 Comes on Input CAN Steering wheel symbol signal Forward recognition camera
      IPA indicator light*2 Comes on/Blinks Input CAN IPA indicator display signal Clearance warning ECU assembly
      1. *1: w/ Pre-collision System
      2. *2: w/ Intelligent Clearance Sonar System
      3. *3: w/ Lane Departure Alert System
      4. *4: w/o Dynamic Radar Cruise Control System
      5. *5: w/ Dynamic Radar Cruise Control System
      6. *6: w/ Tail Indicator Light
      7. *7: w/ Head Indicator Light
      8. *8: w/ Front Fog Light
      9. *9: w/ Blind Spot Monitor System
      10. *10: w/ Exhaust Heat Recirculation System
      11. *11: w/ Manual (SOS) Switch
      12. *12: w/ Automatic High Beam System
      13. *13: w/ Rear Seat Belt Warning
    2. Main Display
      Item Condition Input/Output Communication line Signal Component Display Area
      Opening Displayed - - - - All
      Speedometer Displayed Input CAN Ready signal Hybrid vehicle control ECU B
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      - Input Direct line Vehicle speed pulse input signal
      Output CAN Vehicle speed signal (meter to other) Related ECUs
      Speed tolerance A signal
      Speed tolerance B signal
      Direct line Vehicle speed pulse output signal
      Fuel receiver gauge Displayed Input CAN Shift selection P signal Hybrid vehicle control ECU A
      Shift selection N signal
      Fuel lid open information signal ECM
      Fuel consumption signal
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Direct line Fuel level signal Fuel sender gauge assembly
      - Output CAN Fuel direct data signal DCM (Telematics transceiver)*1
      Fuel gauge state signal Related ECUs
      Fuel gauge indication signal
      Fuel initial signal
      Fuel average signal
      Odometer Displayed Input CAN Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly) C
      Vehicle speed (SP1) signal
      Direct line ODO/TRIP change switch signal Steering pad switch assembly
      - Output CAN Odo meter unit signal Related ECUs
      Odo meter signal
      TRIP A / TRIP B Displayed Input CAN Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly) C
      Vehicle speed (SP1) signal
      Direct line ODO/TRIP change switch signal Steering pad switch assembly
      - Output CAN TRIP A signal DCM (Telematics transceiver)*1
      TRIP B signal
      Distance (After start) Displayed Input CAN Ready signal Hybrid vehicle control ECU C
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Distance (Range) Displayed Input CAN Ready signal Hybrid vehicle control ECU C
      Engine type information 1 signal
      Engine type information 2 signal
      Engine type information 3 signal
      Engine type information 4 signal
      Fuel consumption signal ECM
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      - Output CAN Drive monitor unit signal 4 Related ECUs
      Drive monitor display signal (Drivable distance)
      Average fuel consumption (After reset) Displayed Input CAN Ready signal Hybrid vehicle control ECU C
      Fuel consumption signal ECM
      Total average fuel consumption reset request signal
      • Navigation receiver assembly*2
      • Radio and display receiver assembly*3
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Direct line Reset signal Steering pad switch assembly
      - Output CAN Drive monitor unit signal 6 Related ECUs
      Drive monitor display signal (Total average fuel consumption)
      Average fuel consumption (TRIP A / TRIP B) Displayed Input CAN Ready signal Hybrid vehicle control ECU C
      Fuel consumption signal ECM
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Average fuel consumption (After start) Displayed Input CAN Ready signal Hybrid vehicle control ECU C
      Fuel consumption signal ECM
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Hybrid system indicator (Split screen) Displayed Input CAN Eco-zone indicator level signal Hybrid vehicle control ECU B
      Upper threshold for eco-driven recommendation signal
      Current fuel consumption (Split screen) Displayed Input CAN Ready signal Hybrid vehicle control ECU B
      Fuel consumption signal ECM
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      - Output CAN Drive monitor unit signal 0 Related ECUs
      Drive monitor display signal (Current fuel consumption)
      Hybrid battery status (Split screen) Displayed Input CAN State of charge signal Hybrid vehicle control ECU B
      Power mode indicator light Displayed Input CAN ECT power indicator signal Hybrid vehicle control ECU A
      Eco mode indicator light Displayed Input CAN Eco mode indicator signal Hybrid vehicle control ECU A
      EV mode indicator light Displayed Input CAN EV mode message signal Hybrid vehicle control ECU A
      Outside temperature Displayed Input CAN Ambient temperature display signal Air conditioning amplifier assembly A
      Ambient temperature display whole number/decimal (0/0.5°C) signal
      Accessory (Power switch mode) Displayed Input CAN Display request of vehicle mode signal Certification ECU (Smart key ECU assembly) C
      Ignition ON (Power switch mode) Displayed Input CAN Display request of vehicle mode signal Certification ECU (Smart key ECU assembly) C
      1. *1: w/ Manual (SOS) Switch
      2. *2: for Navigation Receiver Type
      3. *3: for Radio and Display Type
    3. Multi-information Display
      Item Condition Input/Output Communication line Signal Component
      Opening Displayed - - - -
      Ending Displayed Input CAN Parked condition signal Main body ECU (Multiplex network body ECU)
      Energy flow Displayed Input CAN Energy flow (Engine → Wheels) signal Hybrid vehicle control ECU
      Energy flow (Engine → Motor) signal
      Energy flow (Motor → Wheels) signal
      Energy flow (Motor → HV battery) signal
      Hybrid system indicator (Simple screen) Displayed Input CAN Eco-zone indicator level signal Hybrid vehicle control ECU
      Eco accelerator guidance Displayed Input CAN Upper threshold for eco-driving recommendation signal Hybrid vehicle control ECU
      Hybrid battery status (Simple screen) Displayed Input CAN State of charge signal Hybrid vehicle control ECU
      EV indicator light Displayed Input CAN Engine mode ID signal Hybrid vehicle control ECU
      Engine speed data signal ECM
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Eco score Displayed Input CAN ESPO scene ID signal Hybrid vehicle control ECU
      ESPO score value signal
      Shift selection P signal
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Fuel consumption record Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Fuel consumption signal ECM
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Elapsed time (After reset) Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Direct line Reset signal Steering pad switch assembly
      Elapsed time (TRIP A / TRIP B) Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Direct line Reset signal Steering pad switch assembly
      Elapsed time (After start) Displayed Input CAN Ready signal Hybrid vehicle control ECU
      - Output CAN Drive monitor display signal (After starting driving time)
      • Navigation receiver assembly*1
      • Radio and display receiver assembly*13
      Average speed (After reset) Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Direct line Reset signal Steering pad switch assembly
      Average speed (TRIP A / TRIP B) Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Direct line Reset signal Steering pad switch assembly
      Average speed (After start) Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      - Output CAN Drive monitor unit signal 1
      • Navigation receiver assembly*1
      • Radio and display receiver assembly*13
      Drive monitor display signal (After starting average speed)
      EV driving ratio (After reset) Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Engine mode ID signal
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      EV driving ratio (TRIP A / TRIP B) Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Engine mode ID signal
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      EV driving ratio (After start) Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Engine mode ID signal
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Eco savings Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Fuel consumption signal ECM
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Eco-diary Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Fuel consumption signal ECM
      Vehicle speed pulse signal integrated value signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Drive information tab Displayed - - - -
      Navigation tab*1 Displayed Input CAN/Local bus Navigation signal Navigation receiver assembly
      Audio tab*1 Displayed Input CAN/Local bus Audio signal Navigation receiver assembly
      Air conditioning tab Displayed - - - -
      Driving support tab*3, *5, *6 Displayed Input CAN LDW existence flag signal Forward recognition camera*5
      Display request for PCS signal Driving support ECU assembly*3
      Message tab Displayed - - - -
      Setting tab Displayed - - - -
      Air conditioning system settings Displayed Input CAN A/C on screen request signal Air conditioning amplifier assembly
      Request s-flow status signal
      A/C eco switch select information signal
      Blower custom switch select information signal
      Dr temperature display signal
      A/C eco judge signal
      Blower custom indicator signal
      A/C eco status indicator signal
      Front blower level indicator signal
      S-flow indicator signal
      Dr seat priority indicator request signal
      REC indicator signal
      Fr BLW manual status signal
      Control information status signal
      - Output CAN A/C temperature down switch signal Air conditioning amplifier assembly
      A/C temperature up switch signal
      Recirculation switch signal
      Down switch of blower signal
      Up switch of blower signal
      Eco air condition switch signal
      Blower customizing signal
      S-FLOW ON/OFF signal
      Turn-by-turn navigation*1 Displayed Input CAN/Local bus Turn-by-turn signal Navigation receiver assembly
      Gasoline price Displayed Input Direct line Fuel level signal Fuel sender gauge assembly
      2WD MAINTENANCE MODE RESOLVER-1 NOT ADJUSTED Displayed Input CAN Check mode 1 signal Hybrid vehicle control ECU
      Adjusted display requirement of resolver offset signal Inverter with converter assembly
      2WD MAINTENANCE MODE RESOLVER-2 NOT ADJUSTED Displayed Input CAN Check mode 1 signal Hybrid vehicle control ECU
      Adjusted display requirement of resolver offset signal Inverter with converter assembly
      2WD CERTIFICATION MODE RESOLVER-1 NOT ADJUSTED Displayed Input CAN Check mode 2 signal Hybrid vehicle control ECU
      Adjusted display requirement of resolver offset signal Inverter with converter assembly
      2WD CERTIFICATION MODE RESOLVER-2 NOT ADJUSTED Displayed Input CAN Check mode 2 signal Hybrid vehicle control ECU
      Adjusted display requirement of resolver offset signal Inverter with converter assembly
      ADJUSTING LDA CAMERA*5 Displayed Input CAN Camera adjustment mode text signal Forward recognition camera
      ADJUSTING FRONT RADAR BEAM*6 Displayed Input CAN Inspection mode for ACC signal Driving support ECU assembly
      ADJUSTING FRONT RADAR BEAM ERROR*6 Displayed Input CAN FRD adjustment signal Driving support ECU assembly
      ADJUSTING FRONT RADAR BEAM ALONG VERTICAL AXIS*6 Displayed Input CAN FRD adjustment signal Driving support ECU assembly
      ADJUSTING FRONT RADAR BEAM ALONG HORIZONTAL AXIS*6 Displayed Input CAN FRD adjustment signal Driving support ECU assembly
      CHECKING CRUISE CONTROL BRAKE*6 Displayed Input CAN Inspection mode for ACC signal Driving support ECU assembly
      Write Zero-Point of Steering Angle*4 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly
      End of Adjustment*4 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly
      Memory Error*4 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly
      BRAKE !*3, *4 Displayed Input CAN PCS warning message signal Driving support ECU assembly*3
      ICS multi-information signal Clearance warning ECU assembly*4
      Push and Hold Power Switch for Emergency Stop Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Shift to [N] Position and Push Power Switch to Restart Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Hybrid System Stopped Shift to [P] Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Hybrid System Stopped Stop in a Safe Place Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Dynamic radar cruise control system warning (image display)*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Lane departure alert system warning (image display)*5 Displayed Input CAN White line symbol left side signal Forward recognition camera
      White line symbol right side signal
      Braking Power Low Stop in a Safe Place See Owner's Manual Displayed Input CAN Brake warning light control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Antilock Brake System Malfunction Visit Your Dealer Displayed Input CAN ABS warning light control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Braking Power Low Stop in a Safe Place See Owner's Manual Displayed Input CAN Brake reservoir level warning switch signal Skid control ECU (Brake booster with master cylinder assembly)
      Object Detected Acceleration Reduced*4 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly
      Switch to Brake*4 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly
      Accelerator Stuck Depress Brake to Stop Displayed Input CAN BOS multi-information display request signal Hybrid vehicle control ECU
      Shift to [P] Before Exiting Vehicle Displayed Input CAN NDB warning signal Hybrid vehicle control ECU
      Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Hybrid System Failure. Please Refrain From Being Towed Displayed Input CAN Towing warning signal Hybrid vehicle control ECU
      Each door open (vehicle being driven) (image display) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Back door courtesy switch signal
      Hood courtesy switch signal
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Each door open (vehicle stopped) (image display) Displayed Input CAN Driver door open display signal Certification ECU (Smart key ECU assembly)
      Front passenger door open display signal
      Rear right open display signal
      Rear left open display signal
      Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Back door courtesy switch signal
      Hood courtesy switch signal
      Parking Assist Malfunction Visit Your Dealer*4 Displayed Input CAN CLSO main switch indicator turn ON signal Clearance warning ECU assembly
      Combination meter display request signal
      Front left area information signal
      Front right area information signal
      Front center area information signal
      Rear left area information signal
      Rear right area information signal
      Rear center area information signal
      Sensor diag request signal
      Clearance sonar detection (image display)*4 Displayed Input CAN Combination meter display request signal Clearance warning ECU assembly
      Front left area information signal
      Front right area information signal
      Front center area information signal
      Rear left area information signal
      Rear right area information signal
      Rear center area information signal
      Front side left area information signal
      Front side right area information signal
      Rear side left area information signal
      Rear side right area information signal
      Sensor diag request signal
      Parking Assist Malfunction*4 Displayed Input CAN Sensor diag request signal Clearance warning ECU assembly
      Clean Parking Assist Sensor*4 Displayed Input CAN Sensor diag request signal Clearance warning ECU assembly
      IPA (Mode Selection, Space Search, Canceled) (image display)*4 Displayed Input CAN IPA information display signal Clearance warning ECU assembly
      IPA (Operating, Complete) (image display)*4 Displayed Input CAN IPA distance display signal Clearance warning ECU assembly
      IPA information display signal Clearance warning ECU assembly
      APGS System Check Visit Your Dealer*4 Displayed Input CAN IPA information display signal Clearance warning ECU assembly
      Close Fuel Lid Displayed Input Direct line Fuel lid signal ECM
      Refuel Ready Displayed Input Direct line Fuel lid signal ECM
      Please Wait Now Opening Displayed Input Direct line Fuel lid signal ECM
      Auto Power OFF to Conserve Battery Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Shift is in [N] Release Accelerator Before Shifting Displayed Input CAN Accelerator pedal depressed in N position signal Hybrid vehicle control ECU
      Depress Brake When Vehicle is Stopped. Hybrid System may Overheat. Displayed Input CAN Accelerator hold caution signal Hybrid vehicle control ECU
      Hybrid Battery Low. Hybrid System Stopped. Shift to [P] and Restart. Displayed Input CAN HV battery low voltage warning ID signal Hybrid vehicle control ECU
      Shift System Not Active Apply Parking Brake Securely While Parking See Owner's Manual Displayed Input CAN P range not held information signal Hybrid vehicle control ECU
      P-ACT error information signal
      CAN error information during PMN-ECU and HV-ECU signal
      Low battery error information signal
      P-SW error information signal
      P-control error status 3 signal
      Shifted to [N] Stop Vehicle to Shift to [P] Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Low 12-Volt Battery Apply Parking Brake Securely While Parking See Owner's Manual Displayed Input CAN Low battery error information signal Hybrid vehicle control ECU
      Shift System Malfunction Apply Parking Brake Securely While Parking See Owner's Manual Displayed Input CAN P range not held information signal Hybrid vehicle control ECU
      P-ACT error information signal
      Shift System Malfunction Shifting Unavailable See Owner's Manual Displayed Input CAN EEPROM error information signal Hybrid vehicle control ECU
      Shift System Malfunction Stop in a Safe Place See Owner's Manual Displayed Input CAN Shift sensor error information signal Hybrid vehicle control ECU
      [P] Switch Malfunction Apply Parking Brake Securely While Parking See Owner's Manual Displayed Input CAN P-SW error information signal Hybrid vehicle control ECU
      Shift System Malfunction Apply Parking Brake Securely While Parking See Owner's Manual Displayed Input CAN CAN error information during PMN-ECU and HV-ECU signal Hybrid vehicle control ECU
      Shift System Malfunction See Owner's Manual Displayed Input CAN P-ECU check demand information signal Hybrid vehicle control ECU
      Hybrid System Malfunction Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Greatly Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 0.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 0.3 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 1.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 0.6 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 1.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 0.9 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 2.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 1.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 5.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 3.1 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 10 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Stop in a Safe Place within 6.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Reduced Output Power Avoid Shifting to [N] Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Avoid Shifting to [N] Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Hybrid System Stopped Stop in a Safe Place Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid System Malfunction Shift to [P] See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Greatly Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 0.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 0.3 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 1.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 0.6 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 1.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 0.9 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 2.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 1.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 5.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 3.1 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 10 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Stop in a Safe Place within 6.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Reduced Output Power Avoid Shifting to [N] Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Avoid Shifting to [N] Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Hybrid System Stopped Stop in a Safe Place Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Check Engine Shift to [P] See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Greatly Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 0.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 0.3 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 1.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 0.6 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 1.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 0.9 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 2.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 1.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 5.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 3.1 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 10 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Stop in a Safe Place within 6.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Reduced Output Power Avoid Shifting to [N] Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Avoid Shifting to [N] Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Hybrid System Stopped Stop in a Safe Place Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery System Malfunction Shift to [P] See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Greatly Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Reduced Output Power Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 0.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 0.3 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 1.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 0.6 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 1.5 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 0.9 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 2.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 1.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 5.0 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 3.1 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 10 km Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Stop in a Safe Place within 6.2 miles Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Reduced Output Power Avoid Shifting to [N] Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Avoid Shifting to [N] Visit Your Dealer Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Hybrid System Stopped Stop in a Safe Place Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Accelerator System Malfunction Shift to [P] See Owner's Manual Displayed Input CAN HV system malfunctioning part signal Hybrid vehicle control ECU
      HV system malfunction indication signal
      Hybrid Battery Low. Shift Out of [N] to Recharge. Displayed Input CAN HV battery low voltage warning ID signal Hybrid vehicle control ECU
      Power Steering Malfunction Steering Power Low Visit Your Dealer Displayed Input CAN Multi-information display request signal Power steering ECU assembly
      Voltage Abnormality Steering Power Low Visit Your Dealer Displayed Input CAN Multi-information display request signal Power steering ECU assembly
      Steering Power Low Visit Your Dealer Displayed Input CAN Multi-information display request signal Power steering ECU assembly
      Power Steering Malfunction Visit Your Dealer Displayed Input CAN Multi-information display request signal Power steering ECU assembly
      Release Parking Brake Displayed Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Key not Detected Check Key Location Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly)
      Release Accelerator Displayed Input CAN GOS multi-information display request signal Hybrid vehicle control ECU
      Hold Steering Wheel*5 Displayed Input CAN Hands-free caution text signal Forward recognition camera
      LDA Steering Assist Unavailable Hold Steering Wheel*5 Displayed Input CAN Hands-free caution text signal Forward recognition camera
      Clean Radar Sensor*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Cruise Control not Available*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Cruise Control not Available Depress the Brake Pedal*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Grille Shutter Inoperative. Visit Your Dealer. Displayed Input CAN Meter request signal Swing grill actuator assembly
      Smart Key System malfunction See owner's manual Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly)
      Blind Spot Monitor Unavailable*7 Displayed Input CAN BSD module status signal Blind spot monitor sensor LH
      Check Cruise Control System Visit Your Dealer*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Check Cruise Control System Depress the Brake Pedal Visit Your Dealer*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Lane Departure Alert Malfunction Visit Your Dealer*5 Displayed Input CAN Fault condition text display signal Forward recognition camera
      Lane Departure Alert Unavailable*5 Displayed Input CAN Steering assist unusable text display signal Forward recognition camera
      Lane Departure Alert Turned ON Steering Assist Active*5 Displayed Input CAN LKA mode text display signal Forward recognition camera
      Lane Departure Alert Turned ON Steering Assist Inactive*5 Displayed Input CAN LKA mode text display signal Forward recognition camera
      HUD Settings (image display)*8 Displayed Input CAN HUD settings signal Meter mirror sub-assembly
      Cruise control main switch guide (ON) (image display) Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Cruise control main switch guide (Set) (image display) Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Cruise control main switch guide (Set/Resume) (image display) Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Air conditioning system setting display (image display) Displayed Input CAN A/C on screen request signal Air conditioning amplifier assembly
      Dr temperature display signal
      Blower custom indicator signal
      A/C eco status indicator signal
      Front blower level indicator signal
      REC indicator signal
      Fr BLW manual status signal
      Air conditioning system S-FLOW mode display (image display) Displayed Input CAN Request s-flow status signal Air conditioning amplifier assembly
      Driving mode (image display) Displayed Input CAN ECT power indicator signal Hybrid vehicle control ECU
      Eco mode indicator signal
      Pre-Collision System Malfunction Visit Your Dealer*3 Displayed Input CAN PCS fault condition text display signal Driving support ECU assembly
      Blind Spot Monitor System Malfunction Visit Your Dealer*7 Displayed Input CAN BSD module status signal Blind spot monitor sensor LH
      Engine Oil Pressure Low Displayed Input CAN Ready signal Hybrid vehicle control ECU
      Oil pressure light lighting prohibition signal
      Direct line Engine oil pressure signal Engine oil pressure switch assembly
      Braking Power Low Visit Your Dealer Displayed Input CAN ECB warning light control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Use on Expressway Only Beware of Stopping or Merging Vehicles!*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Lane Departure Alert System is Unavailable Below Approx. 50 km/h.*5 Displayed Input CAN Speed condition failure text display signal Forward recognition camera
      Lane Departure Alert System is Unavailable Below Approx. 32 MPH.*5 Displayed Input CAN Speed condition failure text display signal Forward recognition camera
      Lane Departure Alert System is Unavailable at this Speed.*5 Displayed Input CAN Speed condition failure text display signal Forward recognition camera
      Dynamic radar cruise control system information (image display)*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Lane departure alert system information (image display)*5 Displayed Input CAN White line symbol left side signal Forward recognition camera
      White line symbol right side signal
      Hybrid System Stopped Steering Power Low Displayed Input CAN Multi-information display request signal Power steering ECU assembly
      Engine Stopped Steering Power Low Displayed Input CAN Multi-information display request signal Power steering ECU assembly
      Turn Power Off Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Key Detected in Vehicle Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly)
      Moon Roof Opened*9 Displayed Input CAN Slide roof open warning request signal Main body ECU (Multiplex network body ECU)
      Window Opened Displayed Input CAN Power window open warning request signal Main body ECU (Multiplex network body ECU)
      Window/Moon Roof Opened*9 Displayed Input CAN Power window open warning request signal Main body ECU (Multiplex network body ECU)
      Slide roof open warning request signal
      Unable to Shift to [D], [B] and [R] Shift after Hybrid System READY Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Shifting Unavailable Press Brake to Shift Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Depress Brake Pedal and Touch Power Switch with Key Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly)
      [Not Ready to Drive] Depress Brake Pedal and Push Power Switch to Start Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly)
      Depress Brake Pedal and Push Power Switch to Start Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly)
      Push Power Switch while Turning Steering Wheel in Either Direction Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly)
      Shift to [P] Position to Start Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Drive-Start Control Malfunction Visit Your Dealer Displayed Input CAN GOS multi-information display request signal Hybrid vehicle control ECU
      ICS Malfunction Visit Your Dealer*4 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly
      Brake Override Malfunction Visit Your Dealer. Displayed Input CAN BOS multi-information display request signal Hybrid vehicle control ECU
      Key Battery Low Replace Key Battery Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly)
      Engine Oil Level Low Add or Replace Displayed Input CAN Engine coolant temperature signal ECM
      Engine speed data signal
      Direct line Engine oil level signal Engine oil level sensor
      Hybrid System Overheated. Reduced Output Power. Displayed Input CAN Motor inverter high temperature warning ID signal Hybrid vehicle control ECU
      Headlight System Malfunction Visit Your Dealer Displayed Input CAN Smart beam indicator signal*10 Main body ECU (Multiplex network body ECU)
      LED headlight indicator signal
      Proximity Notification System Malfunction Visit Your Dealer*11 Displayed Input Direct line Vehicle proximity notification system signal Hybrid vehicle control ECU
      Accelerator and Brake Pedals Depressed Simultaneously Displayed Input CAN BOS multi-information display request signal Hybrid vehicle control ECU
      Maintenance required for Traction battery cooling parts See owner's manual Displayed Input CAN HV battery cooling system maintenance signal Hybrid vehicle control ECU
      Windshield Washer Fluid Low Displayed Input Direct line Washer fluid level signal Level warning switch assembly
      Traction Control Turned Off Displayed Input CAN TRC OFF light signal Skid control ECU (Brake booster with master cylinder assembly)
      Shifting Unavailable Release Accelerator and Press Brake to Shift Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Shift to [N] by Holding Shift Lever in [N] Position Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Shifting Unavailable Low 12-Volt Battery See Owner's Manual Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Shifting Unavailable While READY Indicator is Flashing Try Again Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Shifting Unavailable Wait a Moment and Try Again Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Shifted to [N] Vehicle Must Be in [D] to Shift to [B] Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Unable to Shift to [B] Vehicle Must be in [D] to Shift to [B] Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Shifted to [N] Stop Vehicle to Shift to [D] Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Shifted to [N] Stop Vehicle to Shift to [R] Displayed Input CAN Reject information signal Hybrid vehicle control ECU
      Quick Shifting to [N] Accepted Displayed Input CAN N shift advisory signal Hybrid vehicle control ECU
      Maintenance Required Soon*12 Displayed - - - -
      Maintenance Required Visit Your Dealer*12 Displayed - - - -
      - Output CAN Oil maintenance mileage signal
      • Navigation receiver assembly*1
      • Radio and display receiver assembly*13
      Previous oil maintenance flag signal
      To Activate Auto High Beam, Switch Headlights to High Beam*10 Displayed Input CAN Smart beam advice signal Main body ECU (Multiplex network body ECU)
      A New Key has been Registered Contact Your Dealer for Details Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Depress Brake Pedal and Push Power Switch to Start Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly)
      VSC Turned Off Pre-Collision System Brake System Unavailable*3 Displayed Input CAN PB temporary unusable condition text display signal Driving support ECU assembly
      VSC OFF light signal Skid control ECU (Brake booster with master cylinder assembly)
      Pre-Collision System Unavailable*3 Displayed Input CAN PB temporary unusable condition text display signal Driving support ECU assembly
      ICS Unavailable*4 Displayed Input CAN ICS multi-information signal Clearance warning ECU assembly
      EV MODE Currently Not Available Displayed Input CAN EV mode message signal Hybrid vehicle control ECU
      EV MODE Not Available Warming Up Displayed Input CAN EV mode message signal Hybrid vehicle control ECU
      EV MODE Not Available Low Battery Displayed Input CAN EV mode message signal Hybrid vehicle control ECU
      EV MODE Not Available Excessive Speed Displayed Input CAN EV mode message signal Hybrid vehicle control ECU
      EV MODE Not Available Excessive Accelerator Displayed Input CAN EV mode message signal Hybrid vehicle control ECU
      EV MODE Deactivated Displayed Input CAN EV mode message signal Hybrid vehicle control ECU
      EV MODE Deactivated Low Battery Displayed Input CAN EV mode message signal Hybrid vehicle control ECU
      EV MODE Deactivated Excessive Speed Displayed Input CAN EV mode message signal Hybrid vehicle control ECU
      EV MODE Deactivated Excessive Accelerator Displayed Input CAN EV mode message signal Hybrid vehicle control ECU
      Forward Camera System Unavailable*3 Displayed Input CAN PCS temperature message (Camera) signal Driving support ECU assembly
      Forward Camera System Unavailable Clean Windshield*3 Displayed Input CAN PCS dust message (Camera) signal Driving support ECU assembly
      Pre-Collision System Unavailable Clean Sensor*3 Displayed Input CAN PCS dust message (Radar) signal Driving support ECU assembly
      Pre-Collision System Unavailable*3 Displayed Input CAN PCS temperature message (Radar) signal Driving support ECU assembly
      Have Traction Battery Inspected*2 Displayed Input CAN HV battery state check signal Battery ECU assembly
      Vehicle Start Will Soon be Disabled Have Traction Battery Inspected*2 Displayed Input CAN HV battery state check signal Battery ECU assembly
      Vehicle Start Disabled Until Traction Battery Inspected*2 Displayed Input CAN HV battery state check signal Battery ECU assembly
      Cruise Control Off. Shifted to [P] Position. Depress the Brake Pedal and Shift to [D] to Restart*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Grille Shutter not Initialized. Cancel Maintenance Mode. Displayed Input CAN Meter request signal Swing grill actuator assembly
      CHECKING PRE-CRASH BRAKE*3 Displayed Input CAN Inspection mode signal Driving support ECU assembly
      Would you like to Take Rest?*5 Displayed Input CAN SWS rest advisory display signal Forward recognition camera
      Please Take Rest*5 Displayed Input CAN SWS rest advisory display signal Forward recognition camera
      Please Control Steering Wheel*5 Displayed Input CAN Request for driver action display signal Forward recognition camera
      Rear Cross Traffic*7 Displayed Input CAN BSD buzzer signal Blind spot monitor sensor LH
      Cruise Control not Available Depress the Brake Pedal*6 Displayed Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      Diagnosing Hybrid Battery*2 Displayed Input CAN HV battery state check signal Battery ECU assembly
      1. *1: for Navigation Receiver Type
      2. *2: for Lithium-ion Battery
      3. *3: w/ Pre-collision System
      4. *4: w/ Intelligent Clearance Sonar System
      5. *5: w/ Lane Departure Alert System
      6. *6: w/ Dynamic Radar Cruise Control System
      7. *7: w/ Blind Spot Monitor System
      8. *8: w/ Headup Display System
      9. *9: w/ Sliding Roof System
      10. *10: w/ Automatic High Beam System
      11. *11: w/ Vehicle Proximity Notification System
      12. *12: w/ Maintenance Required Reminder
      13. *13: for Radio and Display Type
    4. Buzzer
      Item Condition Input/Output Communication line Signal Component
      Ready buzzer Sounds once Input CAN Ready buzzer signal Hybrid vehicle control ECU
      Seat belt warning (for Driver side) buzzer Sounds intermittently (Maximum 5 times) Input CAN Driver seat belt buckle switch signal Main body ECU (Multiplex network body ECU)
      Sounds once/Sounds intermittently Input CAN Driver seat buckle switch signal Main body ECU (Multiplex network body ECU)
      Parking brake switch signal
      Shift selection P signal Hybrid vehicle control ECU assembly
      Shift selection R signal
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Power switch operation while driving warning buzzer Sounds intermittently Input CAN Buzzer request signal Certification ECU (Smart key ECU assembly)
      VSC warning buzzer Sounds intermittently Input CAN Buzzer control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Seat belt warning (for Front passenger side) buzzer Sounds once/Sounds intermittently Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Shift selection P signal Hybrid vehicle control ECU
      Shift selection R signal
      Front passenger seat occupant detection status signal Airbag ECU assembly
      Front passenger seat belt buckle switch detection status signal
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Seat belt warning (for Rear seat) buzzer*7 Sounds intermittently Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Rear right door courtesy switch siignal
      Rear left door courtesy switch siignal
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Shift selection P signal Hybrid vehicle control ECU
      Shift selection R signal
      Direct line Rear left seat belt buckle switch signal Rear seat inner with center belt assembly LH
      Rear center seat belt buckle switch signal
      Rear right seat belt buckle switch signal Rear seat inner with center belt assembly RH
      Lane departure alert cancel buzzer*1 Sounds twice Input CAN Lane departure alert cancel buzzer signal Forward recognition camera
      Brake control system power low warning buzzer Sounds intermittently Input CAN Buzzer control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Oil pressure warning buzzer Sounds intermittently Input CAN Ready signal Hybrid vehicle control ECU
      Oil pressure light lighting prohibition signal
      Direct line Engine oil pressure signal Engine oil pressure switch assembly
      EPS warning buzzer Sounds once/Sounds intermittently Input CAN Demand buzzer to meter signal Power steering ECU assembly
      Lane departure alert warning buzzer*1 Sounds intermittently Input CAN LDW buzzer signal Forward recognition camera
      Smart key warning buzzer Sounds intermittently Input CAN Meter buzzer intermittence request signal Certification ECU (Smart key ECU assembly)
      Sounds intermittently (Maximum 9 times) Input CAN Meter buzzer intermittent request (0.7 sec. cycle) signal
      Sounds once Input CAN Meter buzzer single-shot request signal
      Sounds continuously Input CAN Meter buzzer continuation request signal
      NDB warning signal Hybrid vehicle control ECU
      P shift operation advice buzzer Sounds once Input CAN Buzzer request signal Certification ECU (Smart key ECU assembly)
      Brake control system temperature warning buzzer Sounds intermittently Input CAN Buzzer control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Hill-start assist control buzzer Sounds once/Sounds twice Input CAN Buzzer control flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Multi-information display warning buzzer Sounds once Input CAN Multi-information display warning signal Related ECUs
      Direct line
      Accelerator pedal depressed with shift selection N buzzer Sounds continuously Input CAN Accelerator depressed in N position signal Hybrid vehicle control ECU
      Accelerator hold warning buzzer Sounds continuously Input CAN Accelerator hold caution signal Hybrid vehicle control ECU
      Hybrid control system warning buzzer Sounds continuously Input CAN HV system malfunction buzzer signal Hybrid vehicle control ECU
      Sounds intermittently
      Sounds once
      Tow prohibition buzzer Sounds intermittently Input CAN Towing warning signal Hybrid vehicle control ECU
      Hybrid battery low voltage buzzer Sounds continuously/Sounds intermittently Input CAN HV battery low voltage warning ID signal Hybrid vehicle control ECU
      Hybrid unit excessive heat notification buzzer Sounds once Input CAN Motor inverter high temperature warning ID signal Hybrid vehicle control ECU
      Radar cruise control low speed cancel buzzer*2 Sounds twice Input CAN Low speed cancel buzzer request signal Hybrid vehicle control ECU
      Low speed range of the vehicle in front buzzer*2 Sounds four times Input CAN Low speed zone leading vehicle lost buzzer signal Hybrid vehicle control ECU
      Lane departure alert hands-free caution buzzer*1 Sounds intermittently Input CAN Hands-free caution text display signal Forward recognition camera
      Immobiliser key identification completion buzzer Sounds once Input CAN Immobiliser key identification completion signal Certification ECU (Smart key ECU assembly)
      Driving with parking brake unreleased warning buzzer Sounds intermittently Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Driving with door open warning buzzer Sounds intermittently Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Back door courtesy switch signal
      Vehicle speed (SP1) signal Skid control ECU (Brake booster with master cylinder assembly)
      Unsteady driving alert buzzer*1 Sounds twice Input CAN SWS buzzer request signal Forward recognition camera
      Shift reject buzzer Sounds twice Input CAN Shift reject buzzer 2 signal Hybrid vehicle control ECU
      Reject information for P request signal
      EV reject buzzer Sounds twice Input CAN EV mode message signal Hybrid vehicle control ECU
      Light reminder buzzer*5 Sounds continuously Input CAN Lighting system state signal Main body ECU (Multiplex network body ECU)
      Driver door courtesy switch signal
      Turn signal flasher buzzer Sounds intermittently Input CAN Flasher request signal Main body ECU (Multiplex network body ECU)
      Hazard light blinking flag signal Skid control ECU (Brake booster with master cylinder assembly)
      Hazard light activation request signal DCM (Telematics transceiver)*6
      Direct line LH turn signal switch signal Headlight dimmer switch assembly
      RH turn signal switch signal
      Hazard warning switch signal Hazard warning signal switch assembly
      IPA buzzer*3 Sounds once/Sounds twice Input CAN IPA buzzer 2 signal Clearance warning ECU assembly
      Reverse buzzer Sounds once/Sounds intermittently Input CAN Shift selection R signal Hybrid vehicle control ECU
      Brake fluid low warning buzzer Sounds intermittently Input CAN Brake reservoir level warning switch signal Skid control ECU (Brake booster with master cylinder assembly)
      Vehicle speed (SP1) signal
      Shift selection P request buzzer for cruise control*2 Sounds four times Input CAN ACC display ID2 signal Hybrid vehicle control ECU
      HV battery check request notification buzzer*4 Sounds intermittently Input CAN HV battery state check signal Battery ECU assembly
      Shift selection N advisory buzzer Sounds once Input CAN N shift advisory signal Hybrid vehicle control ECU
      1. *1: w/ Lane Departure Alert System
      2. *2: w/ Dynamic Radar Cruise Control System
      3. *3: w/ Intelligent Clearance Sonar System
      4. *4: for Lithium-ion Battery
      5. *5: w/ Light Reminder Buzzer
      6. *6: w/ Manual (SOS) Switch
      7. *7: w/ Rear Seat Belt Warning
    5. Others
      Item Condition Input/Output Communication line Signal Component
      Clock Displayed - - - -
      Meter illumination Illumination level Input CAN Auto dimmer signal* Main body ECU (Multiplex network body ECU)
      Taillight request signal
      Panel lighting request signal
      Direct line Illumination level signal Light control rheostat switch (Combination switch assembly)
      - Output CAN Lounge illumination off signal Main body ECU (Multiplex network body ECU)
      Rheostat duty signal Related ECUs
      Tail cancel signal
      Direct line Illumination level output signal
      1. *: w/ Automatic Light Control

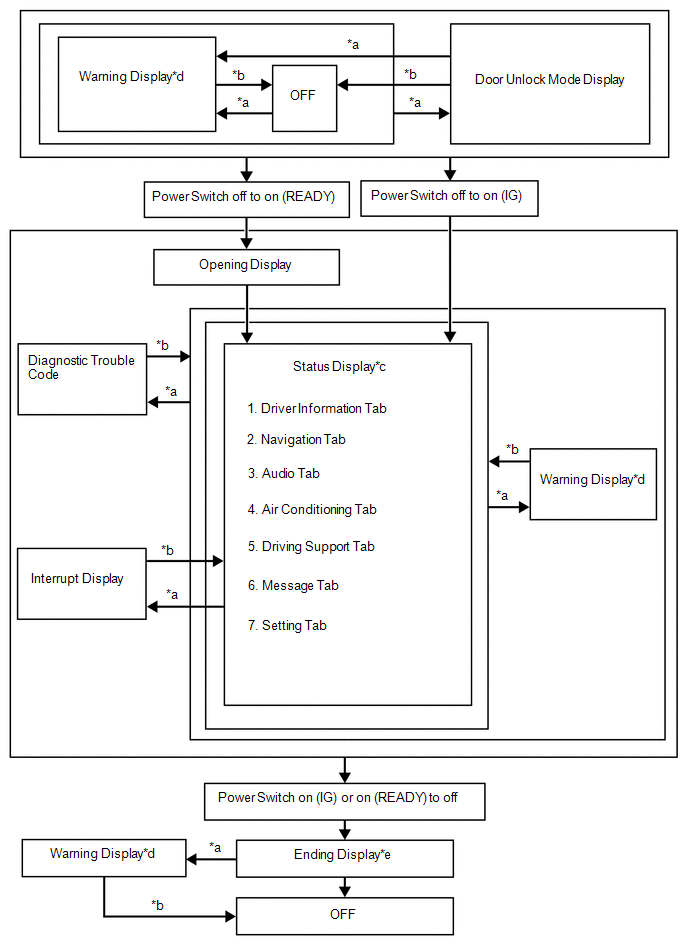

  3. MULTI-INFORMATION DISPLAY FLOW CHART
    GTY609540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    DISPLAY CHANGE CONDITION

    Item Display Change Condition
    *a Conditions are met.
    *b Conditions are not met.
    *c Item or display is selected by operating the steering pad switch.
    *d If there are multiple display requests, items will be displayed in sequence.
    *e Odometer, elapsed time (after start), distance (after start), average fuel consumption (after start) and eco score result are displayed.
scientia non olet · About LEMON Manuals
