Airbag System - Diagnostic Codes (2 Of 3)
>>
Airbag System
>>
DTC B1697-82: Lost Communication with Door Side Airbag Sensor LH; DTC B1698-82: Door Side Airbag Sensor LH Initialization Incomplete [06/2015 - ]
>>

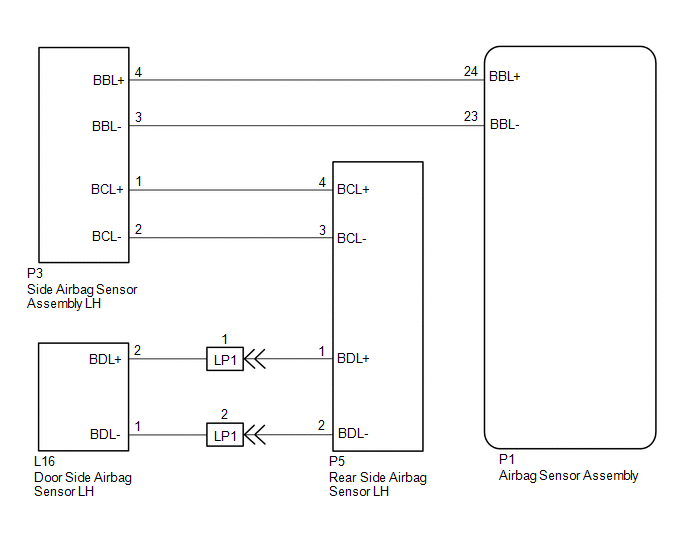

Wiring Diagram
DTC B1697-82: Lost Communication with Door Side Airbag Sensor LH; DTC B1698-82: Door Side Airbag Sensor LH Initialization Incomplete [06/2015 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
