Installation [06/2015 - 11/2018]: Procedure

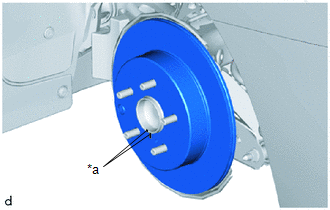

1. Align the matchmarks of the rear disc and rear axle hub and bearing assembly, and install the rear disc.
   NOTE:

   When replacing the rear disc with a new one, select the installation position where the rear disc has minimal runout.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

1. Install the parking brake shoe adjusting hole plug to the rear disc.

1. Install the rear disc brake cylinder mounting to the rear axle beam assembly with the 2 bolts.

   Torque: 72 N*m (734 kgf*cm, 53 ft.*lbf)

1. Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new rear disc brake bush dust boots as shown in the illustration.

   HINT:

   Apply more than 0.3 g (0.01 oz.) of lithium soap base glycol grease to each rear disc brake bush dust boot.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium Soap Base Glycol Grease

2. Install the 2 rear disc brake bush dust boots to the rear disc brake cylinder mounting.

1. Apply a light layer of lithium soap base glycol grease to the contact surface of the rear disc brake cylinder slide pin and a new rear disc brake cylinder slide bush.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium Soap Base Glycol Grease

2. Install the rear disc brake cylinder slide bush to the rear disc brake cylinder slide pin.
3. Apply a light layer of lithium soap base glycol grease to the sliding part and the sealing surfaces of the rear disc brake cylinder slide pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium Soap Base Glycol Grease

4. Install the 2 rear disc brake cylinder slide pins to the rear disc brake cylinder mounting.
5. Push the rear disc brake cylinder slide pin into each rear disc brake bush dust boot to engage the pins to the rear disc brake bush dust boot.

1. Clean the rear No. 1 disc brake pad support plate, rear No. 2 disc brake pad support plate, rear disc brake cylinder mounting and rear disc brake pad of the contact surface with brake cleaner.

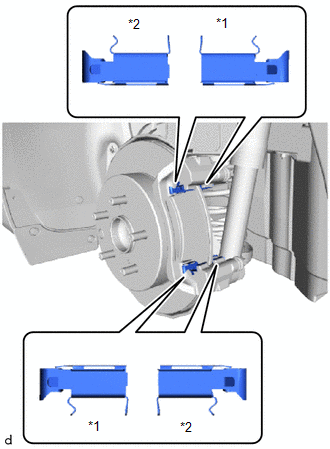

2. Install the 2 rear No. 1 disc brake pad support plates and 2 rear No. 2 disc brake pad support plates to the rear disc brake cylinder mounting as shown in the illustration.
   NOTE:

   • The shapes of the rear No. 1 disc brake pad support plate and rear No. 2 disc brake pad support plate differ. Therefore, when replacing a rear No. 1 disc brake pad support plate and rear No. 2 disc brake pad support plate with a new plate, make sure to check the part number and shape prior to installation.
   • When reusing a rear No. 1 disc brake pad support plate and rear No. 2 disc brake pad support plate, make sure to check the installation position using the matchmark placed during removal proper to installation.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	REAR NO. 1 DISC BRAKE PAD SUPPORT PLATE
   *2	REAR NO. 2 DISC BRAKE PAD SUPPORT PLATE

1. Apply disc brake grease to both sides of the 2 rear No. 1 rear disc brake anti-squeal shims as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Disc Brake Grease

2. Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim to each rear disc brake pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear No. 1 Disc Brake Anti-squeal Shim
   *2	Rear No. 2 Disc Brake Anti-squeal Shim
   *3	Rear Disc Brake Pad Wear Indicator Plate

   NOTE:

   Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim in the correct positions and direction as shown in the illustration.

3. Install the rear disc brake pad wear indicator plate to each rear disc brake pad.
   NOTE:

   Install the rear disc brake pad wear indicator plate in the correct positions and direction as shown in the illustration.

1. Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.
   NOTE:

   • Do not apply disc brake grease to the lining surface of the rear disc brake pads.
   • Install the rear disc brake pad so that the rear disc brake pad wear indicator plate is mounted on the lower side of the vehicle.

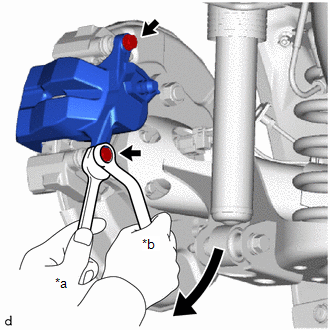

1. Hold the 2 rear disc brake cylinder slide pins and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with the 2 bolts.

   Torque: 26.5 N*m (270 kgf*cm, 20 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   *b	Turn

1. Connect the rear brake tube flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

   Torque: 33.3 N*m (340 kgf*cm, 25 ft.*lbf)

   NOTE:

   • When connecting the front flexible hose, check that it has no twisting, bending, or interference with other components.
   • Install the front flexible hose lock securely into the lock hole in the disc brake cylinder assembly.

Refer to PROCEDURE - Step 11

Refer to PROCEDURE - Step 3

Refer to ON-VEHICLE INSPECTION [06/2015 - ]

Refer to BLEEDING [06/2015 - ]

Refer to ADJUSTMENT [06/2015 - ]

Refer to PROCEDURE - Step 1
