Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER

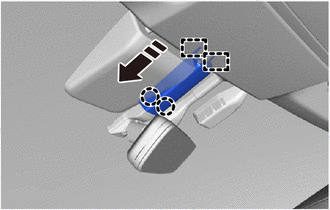

    1. Disengage the 2 claws and 2 guides to remove the inner rear view mirror stay holder cover as shown in the illustration.
      GTY594234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

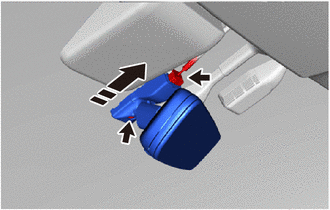

    1. Disconnect the connector.
      GTY598378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Using a T20 "TORX" socket wrench, remove the screw.
    3. Remove the inner rear view mirror assembly as shown in the illustration to remove it.
