Removal [06/2015 - ]: Procedure

Refer to REMOVAL [06/2015 - ]

1. Apply protective tape around the front pillar outer garnish.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

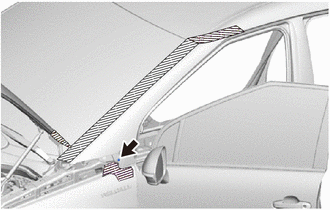

2. Using a hexagon socket wrench 4, remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the claws, clips and guide to remove the front pillar outer garnish as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hands Here
   	Remove in this Direction (1)
   	Remove in this Direction (2)

   NOTE:

   If the front pillar outer garnish contacts the body, it could be damaged.

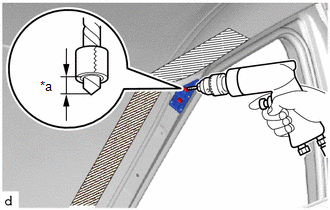

1. Insert a 4.0 mm (0.157 in.) drill bit into a drill.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	5.0 mm (0.197 in.)

2. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

   HINT:

   Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

3. Lightly press the drill against the rivets to drill off the rivet flanges, and remove the 2 rivets.
   NOTE:

   • Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
   • Prying the rivets with the drill may damage the rivet installation holes or drill bit.
   • Be careful of the drilled rivets, as they may be hot.
4. Remove the No. 2 windshield outside moulding clip.
