Removal [06/2015 - ]: Procedure

  1. REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING

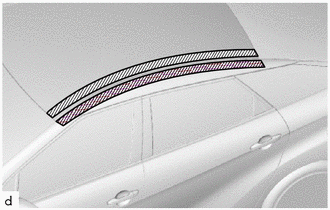

    1. Apply protective tape around the center roof drip side finish moulding.
      GTY587848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

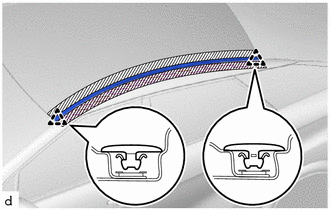

    2. Disengage the roof drip side finish moulding clips to remove the center roof drip side finish moulding.
      NOTE:
      • Do not remove the roof drip side finish moulding clip.
      • If the roof drip side finish moulding clip is damaged or falls out, replace it with a new one.
      GTY548508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
