Components [06/2015 - ]

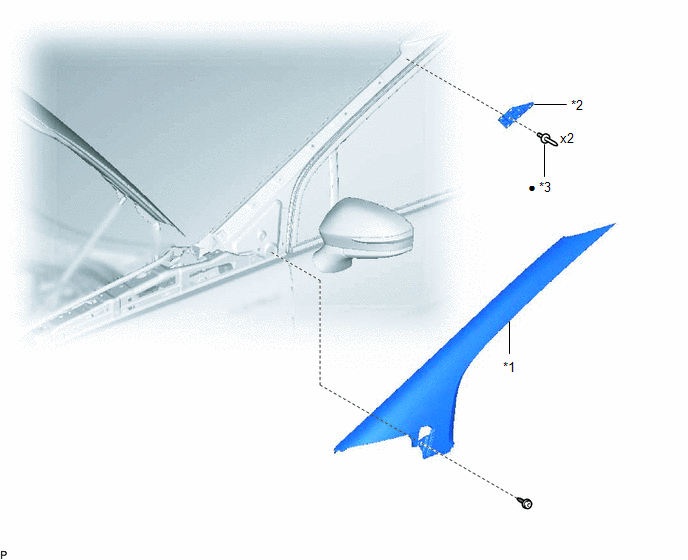

Fig 1: Windshield Outside Molding Replacement Components
GTY551158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT PILLAR OUTER GARNISH *2 NO. 2 WINDSHIELD OUTSIDE MOULDING CLIP
*3 RIVET - -
• Non-reusable part - -
