Removal [06/2015 - ]: Procedure

REMOVE REAR WHEEL HOUSE FRONT PLATE
See step 1
REMOVE NO. 2 MOTOR UNDER COVER
Refer to PROCEDURE - Step 1 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 1 [11/2018 - ]
REMOVE FRONT FLOOR COVER LH
Refer to PROCEDURE - Step 2 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 2 [11/2018 - ]
REMOVE FRONT FLOOR COVER RH
Refer to PROCEDURE - Step 3 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 3 [11/2018 - ]

REMOVE ROCKER PANEL MOULDING COVER (for Rear Side)

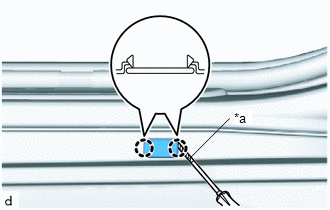

Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the rocker panel moulding cover.

HINT:

Use the same procedure for the front and rear sides.

GTY592652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY

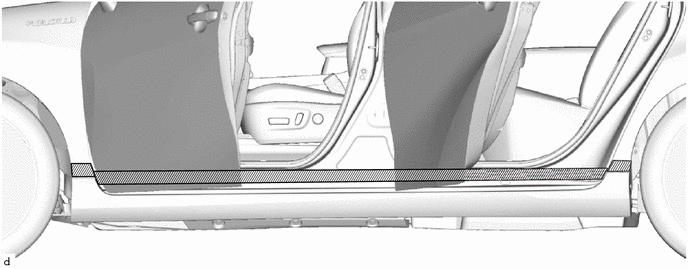

Apply protective tape around the body rocker panel moulding assembly.

GTY585277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

-

-

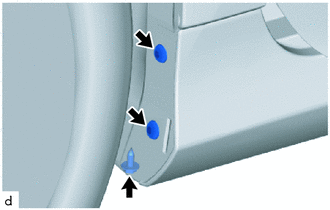

Remove the screw.

GTY562686

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

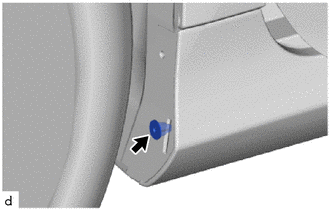

Using a hexagon socket wrench 4, remove the 2 screws.

Remove the grommet.

GTY562685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

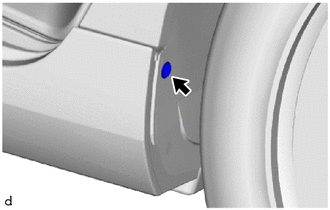

Using a hexagon socket wrench 4, remove the screw.

GTY562688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

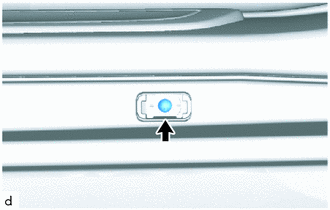

Remove the screw.

GTY602878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the front and rear sides.

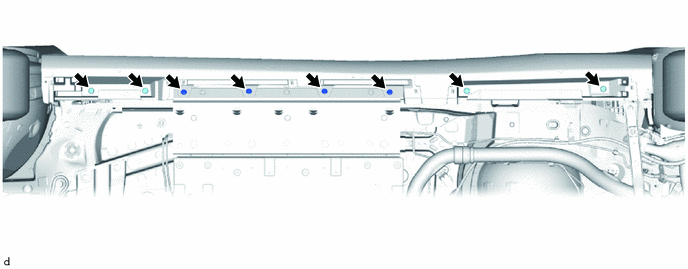

Remove the 8 clips.

GTY562690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

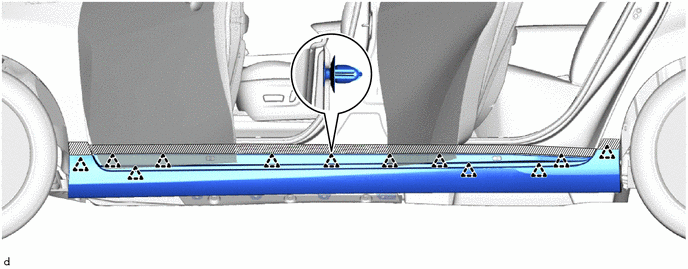

Disengage the clips to remove the body rocker panel moulding assembly.

GTY562680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
