Reassembly [06/2015 - ]: Procedure

  1. INSTALL REAR BODY SUPPORT BRACKET REINFORCEMENT

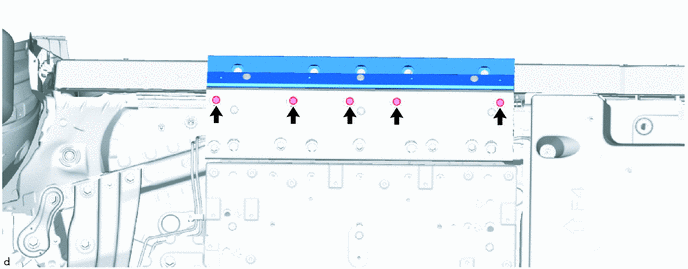

    1. Install the rear body support bracket reinforcement with the 5 bolts.

      Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

      GTY562679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
