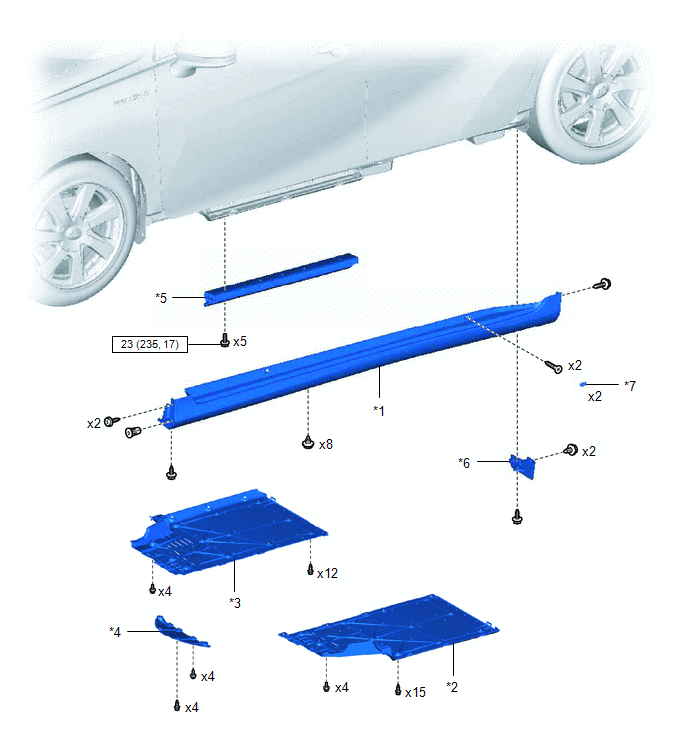

Components [06/2015 - ]
| Callout | Description | Callout | Description |
| *1 | BODY ROCKER PANEL MOULDING ASSEMBLY | *2 | FRONT FLOOR COVER LH |
| *3 | FRONT FLOOR COVER RH | *4 | NO. 2 MOTOR UNDER COVER |
| *5 | REAR BODY SUPPORT BRACKET REINFORCEMENT | *6 | REAR WHEEL HOUSE FRONT PLATE |
| *7 | ROCKER PANEL MOULDING COVER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
