Removal [06/2015 - 11/2018]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work.

Refer to PRECAUTION [06/2015 - ]
REMOVE LUGGAGE TRIM SERVICE HOLE COVER
Refer to PROCEDURE - Step 2
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3
REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 4
REMOVE REAR DOOR ARMREST COVER
Refer to PROCEDURE - Step 5
REMOVE NO. 1 REAR DOOR STIFFENER CUSHION
Refer to PROCEDURE - Step 6
REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 8
REMOVE REAR DOOR GLASS INNER WEATHERSTRIP
Refer to PROCEDURE - Step 12
REMOVE REAR DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 14
REMOVE REAR DOOR GLASS RUN
Refer to PROCEDURE - Step 15
REMOVE REAR DOOR WINDOW REAR LOWER FRAME SUB-ASSEMBLY
Refer to PROCEDURE - Step 17
REMOVE REAR DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 18
REMOVE REAR DOOR REAR GUIDE SEAL
Refer to PROCEDURE - Step 20

REMOVE REAR DOOR BELT MOULDING ASSEMBLY

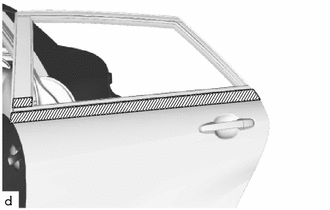

Apply protective tape around the rear door belt moulding assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

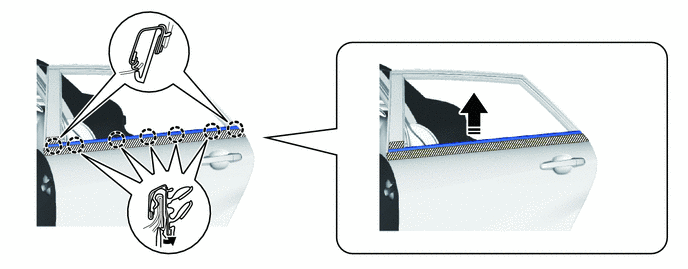

Using a screwdriver, disengage the claws to remove the rear door belt moulding assembly as shown in the illustration.

	Push	-	-
	Remove in this Direction	-	-
