Removal [06/2015 - ]: Procedure

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 8

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

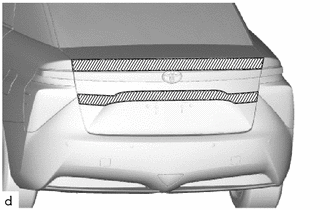

   Apply protective tape around the luggage compartment door outside garnish sub-assembly, rear light assembly LH, rear light assembly RH and luggage compartment door outside garnish.

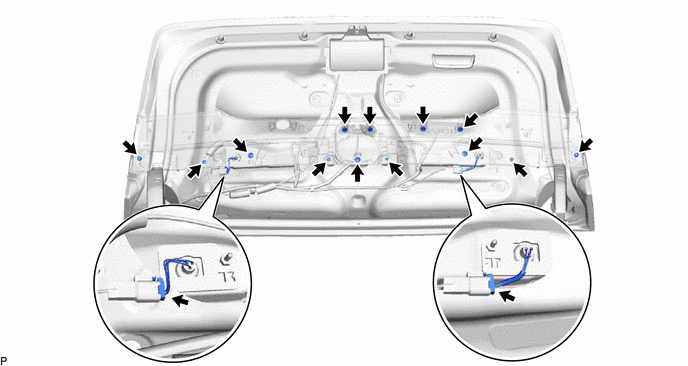

2. Disconnect the 2 connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the 9 nuts and 4 bolts.

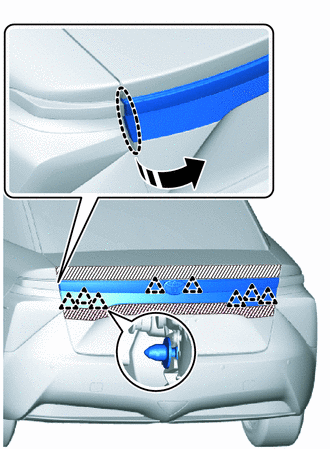

4. Disengage the clips as shown in the illustration to remove the luggage compartment door outside garnish sub-assembly together with the rear light assembly LH, rear light assembly and luggage compartment door outside garnish as a single unit.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hands Here
   	Remove in this Direction

   NOTE:

   To prevent damage to the individual components, the luggage compartment door garnish sub-assembly outside, rear light assembly LH, rear light assembly RH and luggage compartment door garnish outside should be removed from the vehicle as a single unit.

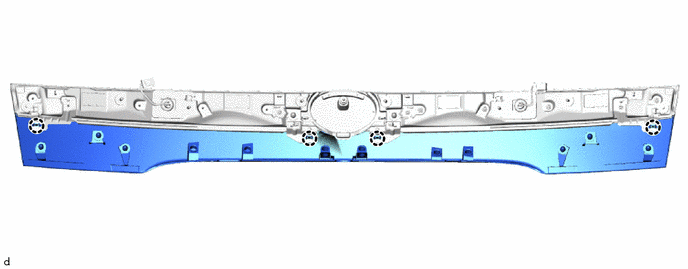

5. Disengage the claws to remove the luggage compartment door outside garnish sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

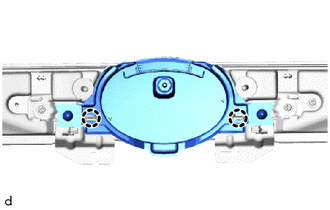

   Disengage the claws to remove the luggage compartment door outside garnish.
