Removal [06/2015 - 11/2018]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work.

Refer to PRECAUTION [06/2015 - ]
REMOVE LUGGAGE TRIM SERVICE HOLE COVER
Refer to PROCEDURE - Step 2
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3
REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
Refer to REMOVAL [06/2015 - ]
REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP
Refer to PROCEDURE - Step 16
REMOVE FRONT DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 22
REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 23
REMOVE FRONT DOOR GLASS RUN
Refer to PROCEDURE - Step 25
REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 6
REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY
Refer to PROCEDURE - Step 29
REMOVE FRONT DOOR FIX WINDOW GLASS
Refer to PROCEDURE - Step 30

REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

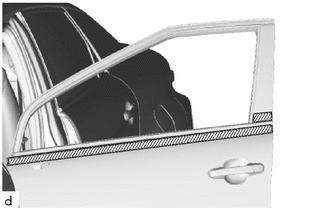

Apply protective tape around the front door belt moulding assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

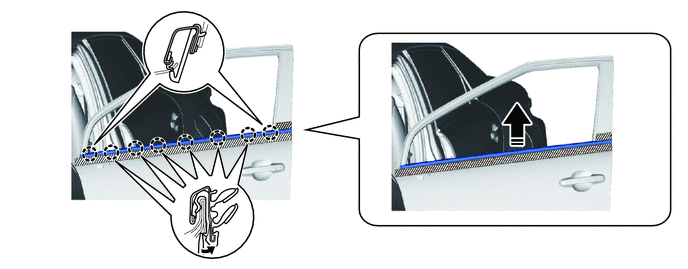

Using a screwdriver, disengage the claws to remove the front door belt moulding assembly as shown in the illustration.

	Push	-	-
	Remove in this Direction	-	-
