Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

    Refer to REMOVAL [06/2015 - 11/2018]

  2. REMOVE REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 6

  3. REMOVE REAR DOOR FRAME GARNISH

    Refer to PROCEDURE - Step 16

  4. REMOVE REAR DOOR CHECK ASSEMBLY

    Refer to PROCEDURE - Step 28

  5. REMOVE REAR DOOR WEATHERSTRIP

    Refer to PROCEDURE - Step 29

  6. REMOVE REAR DOOR WINDOW FRAME FRONT MOULDING

    See step  6

  7. REMOVE REAR DOOR WINDOW FRAME UPPER MOULDING

    Refer to PROCEDURE - Step 32

  8. REMOVE REAR DOOR WINDOW FRAME REAR MOULDING

    See step  8

  9. REMOVE REAR DOOR LOWER OUTSIDE STRIPE
    1. Using an infrared light, heat the rear door lower outside stripe.
      HEATING TEMPERATURE

      Item Temperature
      Rear Door Lower Outside Stripe 40 to 60°C (104 to 140°F) 3 to 5 minutes
      WARNING:
      GTY583262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Infrared Light
      • Do not touch the infrared light and heated parts.
      • Touching the infrared light may result in burns.
      • Touching heated parts for a long time may result in burns.

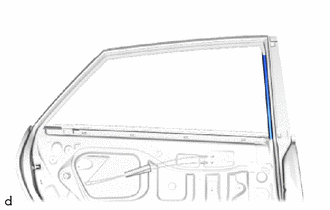

    2. Pull back on one of the ends of the rear door lower outside stripe to remove it.
      GTY599651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR DOOR OUTSIDE STRIPE
    1. Using an infrared light, heat the rear door outside stripe.
      HEATING TEMPERATURE

      Item Temperature
      Rear Door Outside Stripe 40 to 60°C (104 to 140°F) 3 to 5 minutes
      WARNING:
      GTY583262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Infrared Light
      • Do not touch the infrared light and heated parts.
      • Touching the infrared light may result in burns.
      • Touching heated parts for a long time may result in burns.

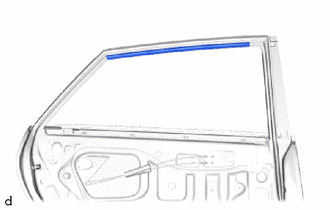

    2. Pull back on one of the ends of the rear door outside stripe to remove it.
      GTY548237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR DOOR UPPER OUTSIDE STRIPE
    1. Using an infrared light, heat the rear door upper outside stripe.
      HEATING TEMPERATURE

      Item Temperature
      Rear Door Upper Outside Stripe 40 to 60°C (104 to 140°F) 3 to 5 minutes
      WARNING:
      GTY583262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Infrared Light
      • Do not touch the infrared light and heated parts.
      • Touching the infrared light may result in burns.
      • Touching heated parts for a long time may result in burns.

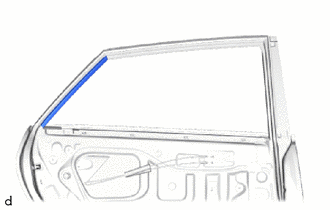

    2. Pull back on one of the ends of the rear door upper outside stripe to remove it.
      GTY548238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
