Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

    Refer to REMOVAL [06/2015 - 11/2018]

  2. REMOVE DOOR FRAME GARNISH

    Refer to PROCEDURE - Step 26

  3. REMOVE FRONT DOOR CHECK ASSEMBLY

    Refer to PROCEDURE - Step 41

  4. REMOVE FRONT DOOR WEATHERSTRIP

    Refer to PROCEDURE - Step 44

  5. REMOVE FRONT DOOR WINDOW FRAME REAR MOULDING

    See step  5

  6. REMOVE FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

    See step  6

  7. REMOVE FRONT DOOR OUTSIDE STRIPE
    1. Using an infrared light, heat the front door outside stripe.
      HEATING TEMPERATURE

      Item Temperature
      Front Door Outside Stripe 40 to 60°C (104 to 140°F) 3 to 5 minutes
      WARNING:
      GTY583262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Infrared Light
      • Do not touch the infrared light and heated parts.
      • Touching the infrared light may result in burns.
      • Touching heated parts for a long time may result in burns.

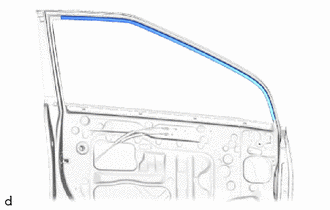

    2. Pull back on one of the ends of the front door outside stripe to remove it.
      GTY548240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT DOOR REAR OUTSIDE STRIPE
    1. Using an infrared light, heat the front door rear outside stripe.
      HEATING TEMPERATURE

      Item Temperature
      Front Door Rear Outside Stripe 40 to 60°C (104 to 140°F) 3 to 5 minutes
      WARNING:
      GTY583262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Infrared Light
      • Do not touch the infrared light and heated parts.
      • Touching the infrared light may result in burns.
      • Touching heated parts for a long time may result in burns.

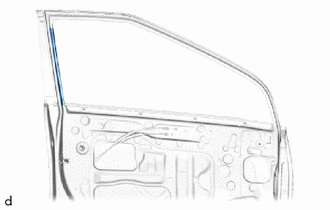

    2. Pull back on one of the ends of the front door rear outside stripe to remove it.
      GTY548241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
