Adjustment [06/2015 - ]: Procedure

  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

    Refer to REMOVAL [06/2015 - ]

  2. ADJUST WASHER NOZZLE SUB-ASSEMBLY
    1. Select a washer nozzle so that the contact area is within the standard. Replace the washer nozzle sub-assembly with the selected one.

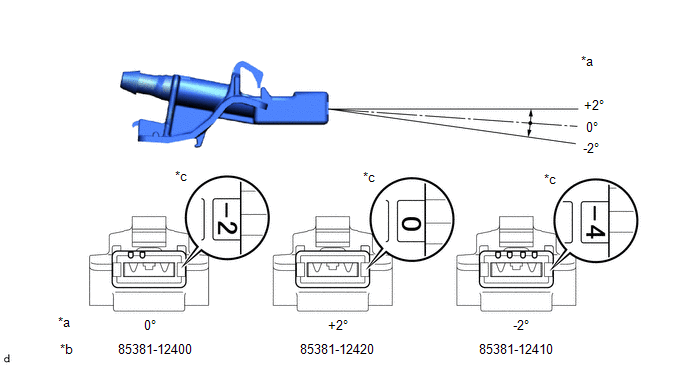

      GTY568217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      -

      *a Washer Fluid Spray Angle *b Nozzle Part Number
      *c Identification Mark - -
  3. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    Refer to INSTALLATION [06/2015 - ]
