Components [06/2015 - ]

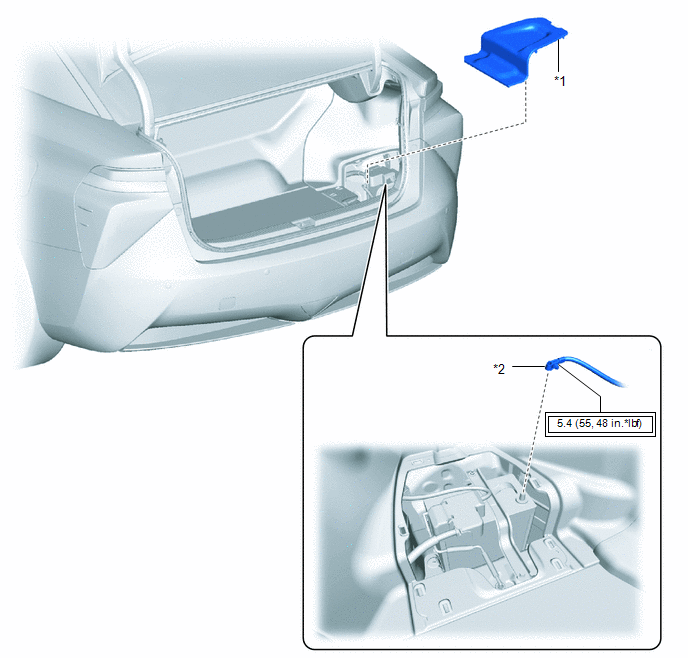

Fig 1: Parking Brake Assembly Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE TRIM SERVICE HOLE COVER	*2	AUXILIARY BATTERY NEGATIVE TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

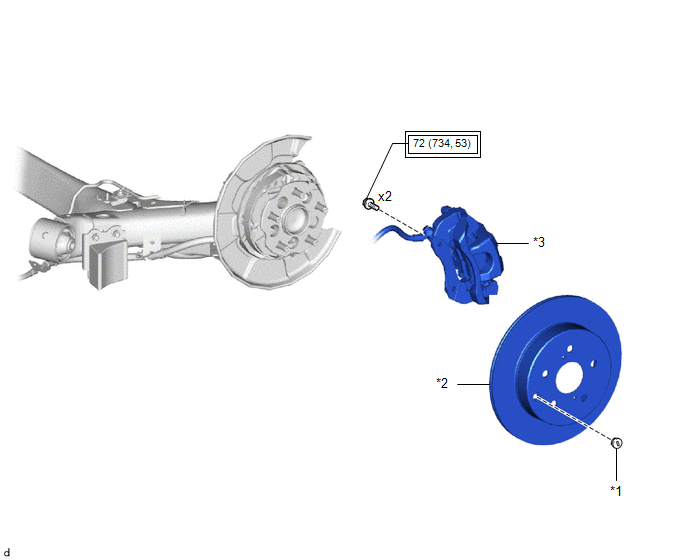

Fig 2: Parking Brake Assembly Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	PARKING BRAKE SHOE ADJUSTING HOLE PLUG	*2	REAR DISC
*3	REAR DISC BRAKE CALIPER ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

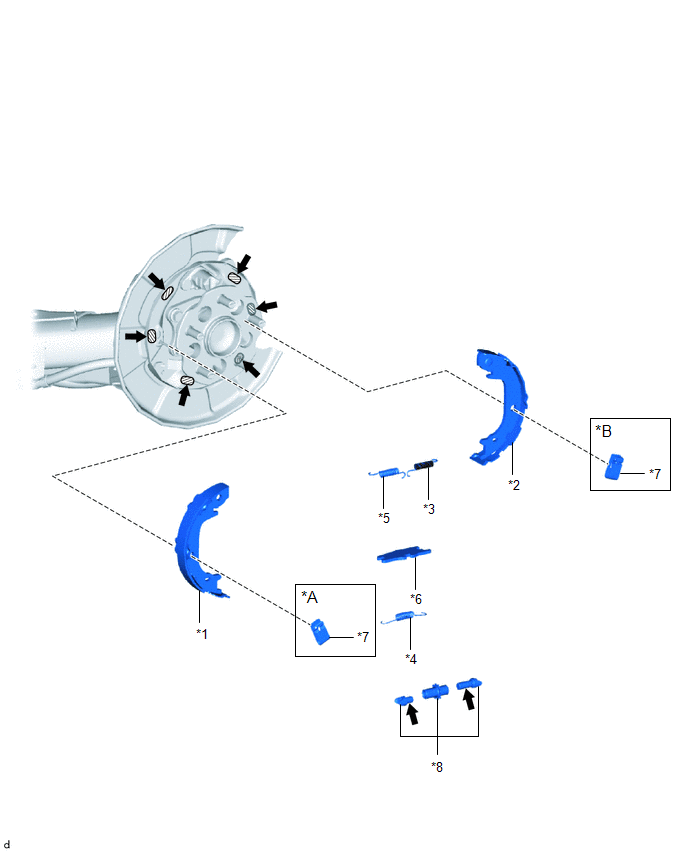

Fig 3: Parking Brake Assembly Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Front Side	*B	for Rear Side
*1	NO. 1 PARKING BRAKE SHOE ASSEMBLY	*2	NO. 2 PARKING BRAKE SHOE ASSEMBLY
*3	NO. 1 PARKING BRAKE SHOE RETURN TENSION SPRING	*4	NO. 2 PARKING BRAKE SHOE RETURN TENSION SPRING
*5	NO. 3 PARKING BRAKE SHOE RETURN TENSION SPRING	*6	PARKING BRAKE SHOE STRUT
*7	BRAKE SHOE HOLD DOWN SPRING	*8	PARKING BRAKE SHOE ADJUSTING SCREW SET
	High temperature grease	-	-

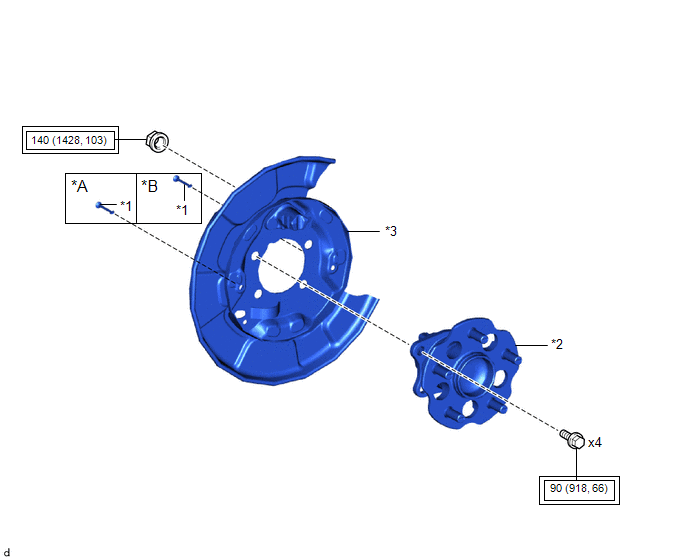

Fig 4: Parking Brake Assembly Replacement Components With Torque Specifications (4 Of 5)

Callout	Description	Callout	Description
*A	for Front Side	*B	for Rear Side
*1	PARKING BRAKE SHOE HOLD DOWN SPRING PIN	*2	REAR AXLE HUB AND BEARING ASSEMBLY
*3	PARKING BRAKE PLATE SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

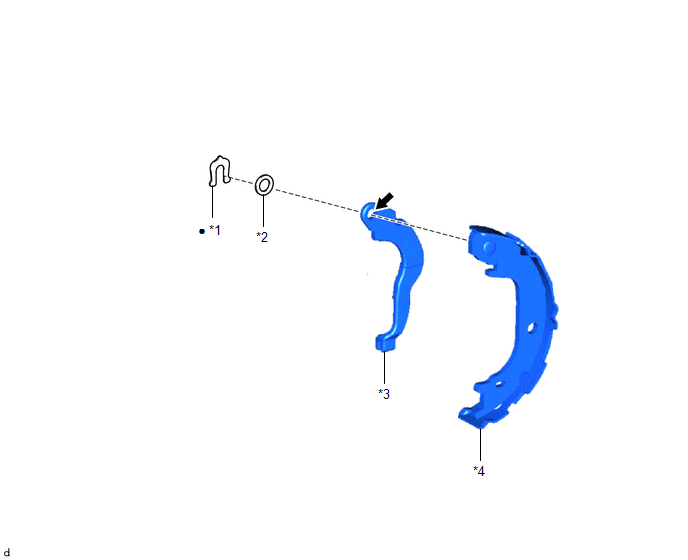

Fig 5: Parking Brake Assembly Replacement Components (5 Of 5)

*1	PARKING BRAKE SHOE TYPE C WASHER	*2	PARKING BRAKE SHOE SHIM
*3	PARKING BRAKE SHOE LEVER	*4	NO. 1 PARKING BRAKE SHOE ASSEMBLY
•	Non-reusable part		High temperature grease
