Parts Location [06/2015 - ]: Illustration

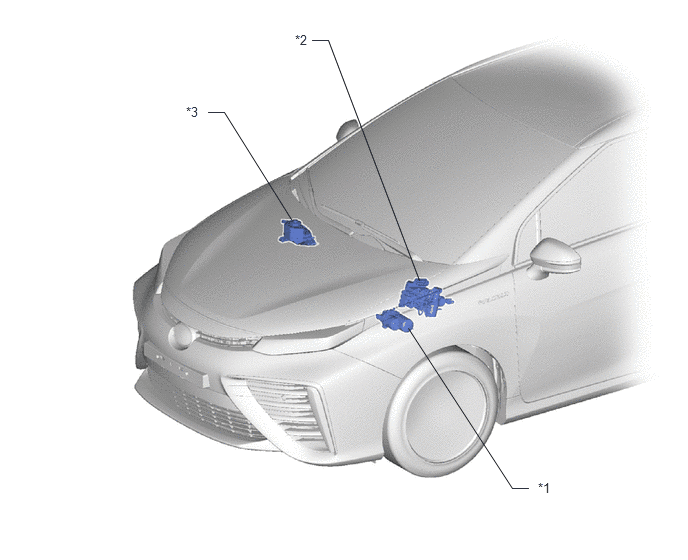

| *1 | BRAKE BOOSTER PUMP ASSEMBLY | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - BRAKE ACTUATOR - SKID CONTROL ECU. |
| *3 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
- | - |

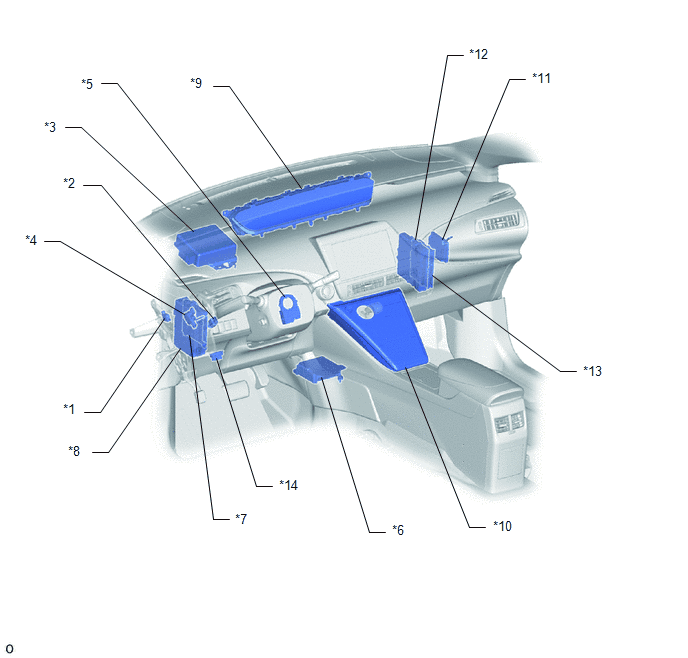

| *1 | PARKING BRAKE SWITCH ASSEMBLY | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | POWER STEERING ECU ASSEMBLY | *4 | BRAKE PEDAL STROKE SENSOR ASSEMBLY |
| *5 | STEERING SENSOR | *6 | AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - ECU-IG1 NO. 1 FUSE |
| *9 | COMBINATION METER ASSEMBLY | *10 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *11 | DRIVING SUPPORT ECU ASSEMBLY | *12 | EV CONTROL ECU |
| *13 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *14 | DLC3 |

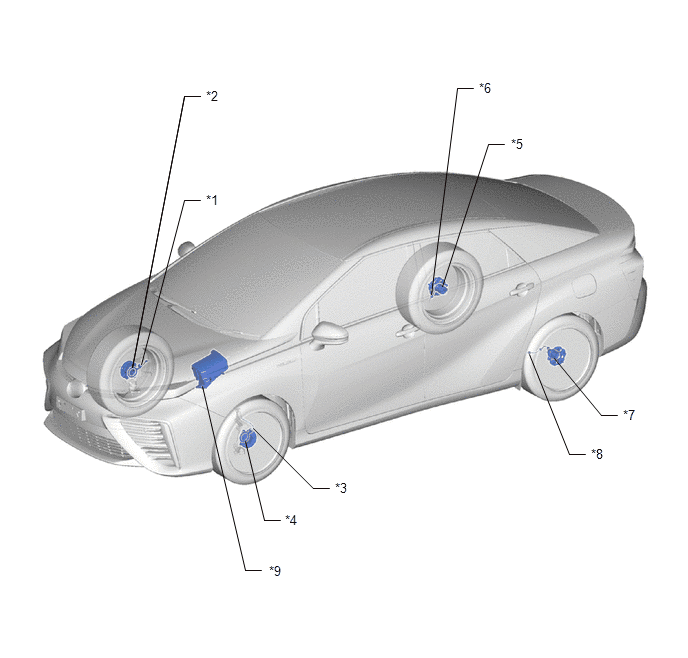

| *1 | FRONT SPEED SENSOR RH | *2 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
| *3 | FRONT SPEED SENSOR LH | *4 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
| *5 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH - REAR SPEED SENSOR RH |
*6 | REAR SKID CONTROL SENSOR WIRE RH |
| *7 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH - REAR SPEED SENSOR LH |
*8 | REAR SKID CONTROL SENSOR WIRE LH |
| *9 | NO. 1 MOTOR COMPARTMENT RELAY BLOCK - ABS-MAIN NO. 1 FUSE - ABS-MAIN NO. 2 FUSE - ABS MTR NO. 1 FUSE - ABS MTR NO. 2 FUSE - ECU-B NO. 4 FUSE |
- | - |
