Removal [06/2015 - 11/2018]: Procedure

Refer to REMOVAL [06/2015 - 11/2018]

See step  24

1. Disengage the claw and guides to remove the front seatback edge protector.

   HINT:

   Use the same procedure for both sides.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

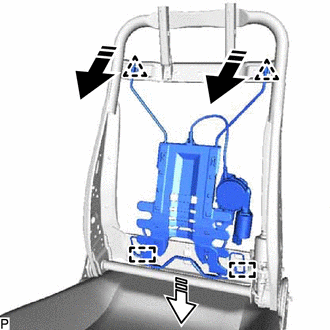

2. Pull in the direction indicated by the arrows (1) in the illustration to disengage the clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Remove in this Direction (1)
   	Remove in this Direction (2)

3. Pull in the direction indicated by the arrows (2) in the illustration, disengage the guides, to remove the lumbar support adjuster assembly.

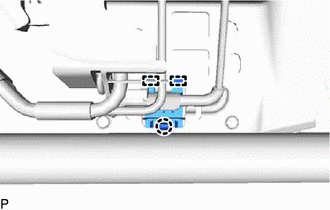

1. Remove the 2 front No. 1 seatback hooks from the lumbar support adjuster assembly.
