Precaution [06/2015 - ]

HINT:

The following procedures are used to prevent wrinkles from forming when installing the seat cover. Make sure to follow the procedures correctly.

The shape of the seat shown in the illustration may differ from the actual seat.

SEAT COVER SET

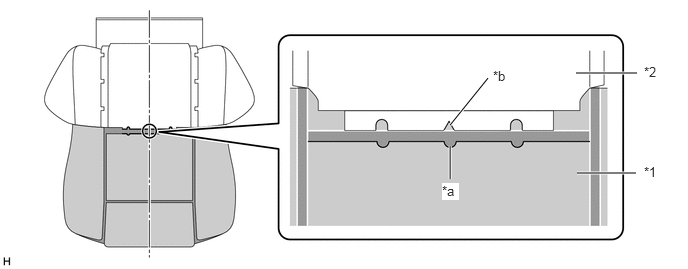

Align the center cutout of the pad with the V-point of the cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Pad	*2	Cover
*a	Center Cutout of Pad	*b	Cover V-point

INSTALL WIRE

Install the wire to the cover as shown in the illustration.

HINT:

Make sure the wire is in the center of the cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Correct

Incorrect

INSTALL HOG RING

Using hog ring pliers, bend the hog rings into the shape shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Make sure to bend the hog rings into the proper shape. Wrinkles will form if improperly shaped hog rings are used.

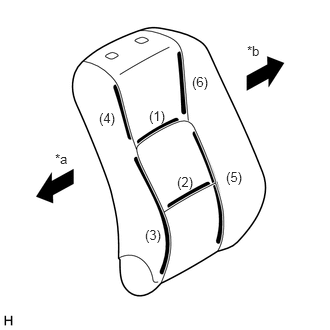

Install the hog rings in the order of the wires shown in the illustration.

HINT:

Install in the following order: Center of seatback, side closest to vehicle exterior, and then side closest to vehicle interior.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Vehicle Exterior
*b	Vehicle Interior

Install in the following order: Center of seat cushion, side closest to vehicle exterior, and then side closest to vehicle interior.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Vehicle Exterior
*b	Vehicle Interior

Install the hog ring so that it is centered in the cutout of the pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cover Hole
*b	Pad Groove
*c	Pad Cutout

After installing the hog rings, hold the seam allowance on both ends of the cover and pull to match the pad and cover installation areas.

HINT:

If the cover is not matched to the pad, wrinkles will form.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

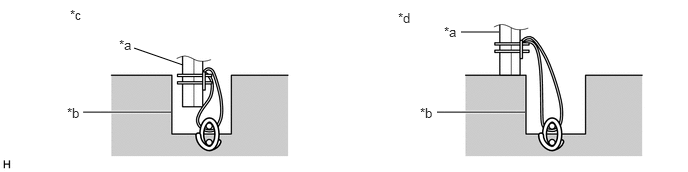

Push the cover seam allowance securely into the groove in the pad.

HINT:

Make sure to completely push the seam allowance into the groove. Wrinkles will form if any of the seam allowance is outside the groove.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cover Seam Allowance	*b	Pad Groove
*c	Correct	*d	Incorrect

INSTALL WEBBING (w/ Airbag)

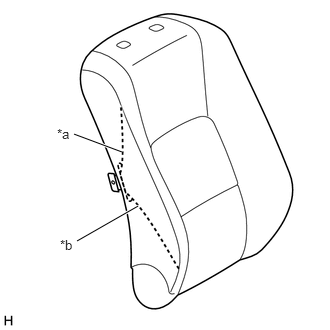

Pass the webbing through the pad hole, and then stretch the webbing so there are no wrinkles.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cover Webbing
*b	Pad Hole

NOTE:

If there are wrinkles in the webbing, wrinkles will appear on the surface of the cover.

CHECK COVER POSITION

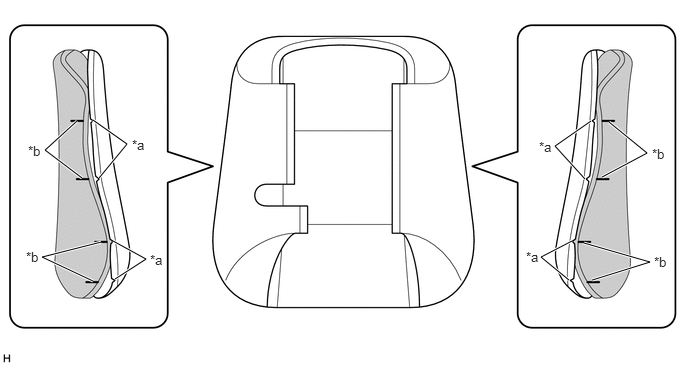

Fold the cover back as shown in the illustration and check that the cover V-points and the pad mark-off lines are approximately aligned.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Cover V-point

Pad Mark-off Line

INSTALL COVER

Align the cover of the seatback with the center of the seatback pad and the cover of the seat cushion with the center of the seat cushion pad. Afterward, install the covers starting from the vehicle exterior and working toward the vehicle interior.

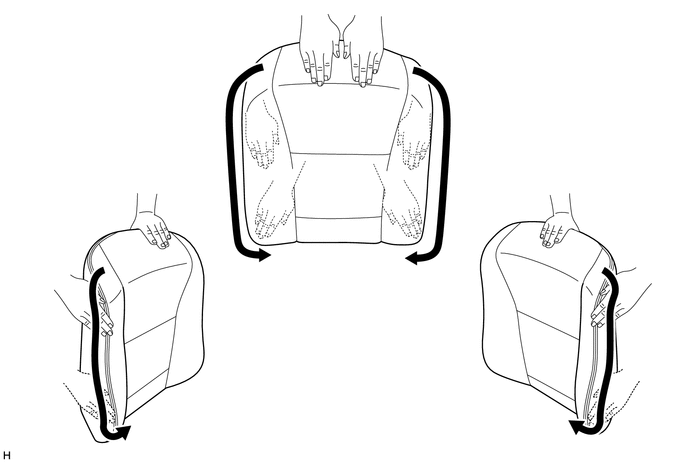

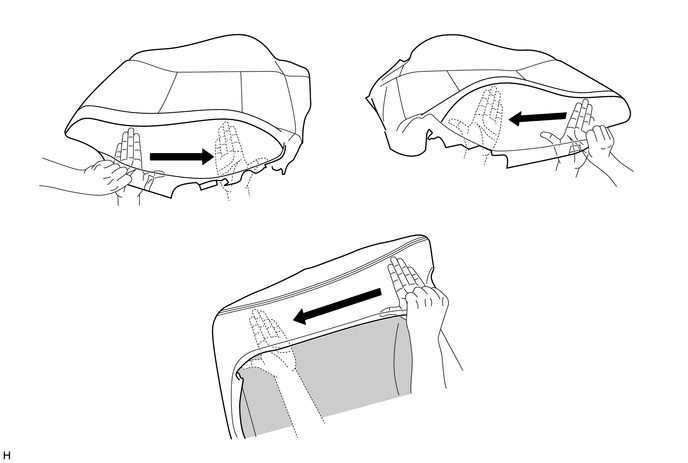

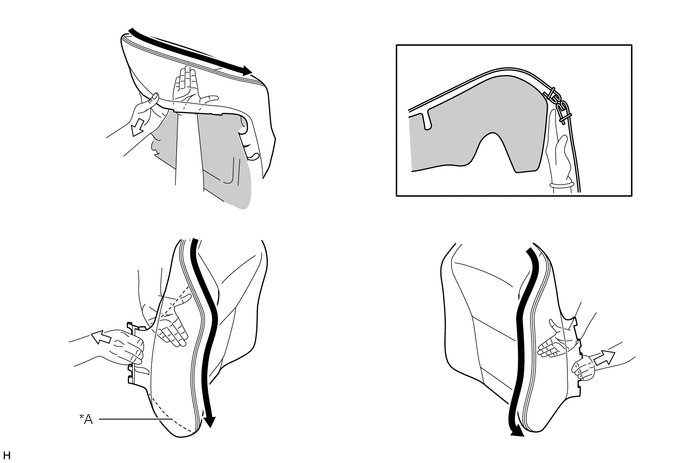

While removing wrinkles by hand as shown in the illustration, install the seatback cover by starting from the bottom and working toward the shoulders, and then install the seat cushion cover by starting from the front and working toward the rear.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Do not push the pad into the cover. Instead, secure the pad and install the cover to the pad.

For Seatback Side:
When installing the cover to the outer side, install the cover up until the installation area of the outer side headrest support.

Do not apply an excessive amount of force when covering the corners, as doing so may cause the cover to tear or fray.

Align the cover seam line with the edges of the pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

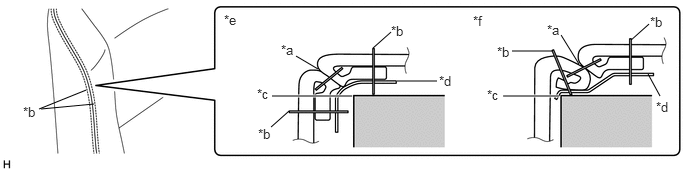

Double-stitch type:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cover Seam Line	*b	Cover Seam (Stitch)
*c	Pad Edge	*d	Felt
*e	Correct	*f	Incorrect

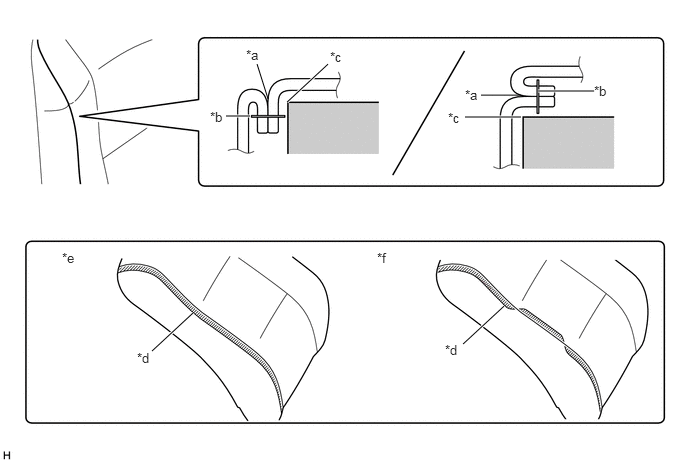

Single-stitch type:

Align the seam allowance in a single direction.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cover Seam Line	*b	Cover Seam (Stitch)
*c	Pad Edge	*d	Seam Allowance of Cover
*e	Correct	*f	Incorrect

Push the cover seam allowance securely into the groove in the pad.

HINT:

Make sure to completely push the seam allowance into the groove. Wrinkles will form if any of the seam allowance is outside the groove.

Correct

Incorrect

REMOVE WRINKLES

After installing the cover with pad to the seat frame, use your fingers to trace the seam line of each part and remove wrinkles.

NOTE:

If there are wrinkles in the webbing, wrinkles will appear on the surface of the cover.

w/ Airbag

CHECKS TO PERFORM AFTER WORK IS FINISHED

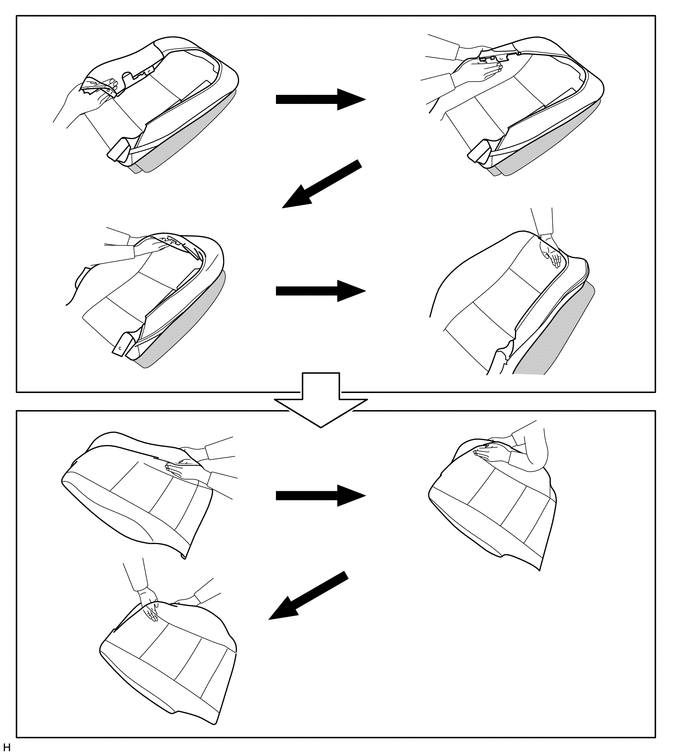

Smooth the cover as shown in the illustration and make sure that there are no wrinkles.

HINT:

If wrinkles remain, it is very likely that the hog rings were not properly bent or covering was not properly performed.

If the cover appears to be off to one side, it is very likely that the hog ring positions are incorrect.

If waves form in the seam line, it is very likely that the seam allowance is not in the groove or the position of the felt is incorrect.

SEAT COVER WIRE PREPARATION METHOD

Cut the seat cover wire to a length which includes the amount necessary for bending the ends (approximately 20 mm (0.787 in.) on one side, approximately 40 mm (1.57 in.) For both sides).

*a	Dimension of Seat Cover Wire after Preparation
*b	Length Necessary for Bending

Secure approximately 10 mm (0.393 in.) of the end of the seat cover wire in a vise.

Bend the seat cover wire near the vise by hand.

Using a hammer, lightly tap the wire until it forms an angle of 90° or less.

Remove the wire from the vise, and then secure the wire in the vise lengthwise.

While securing the wire by hand to prevent the wire from rotating, tighten the vise.
