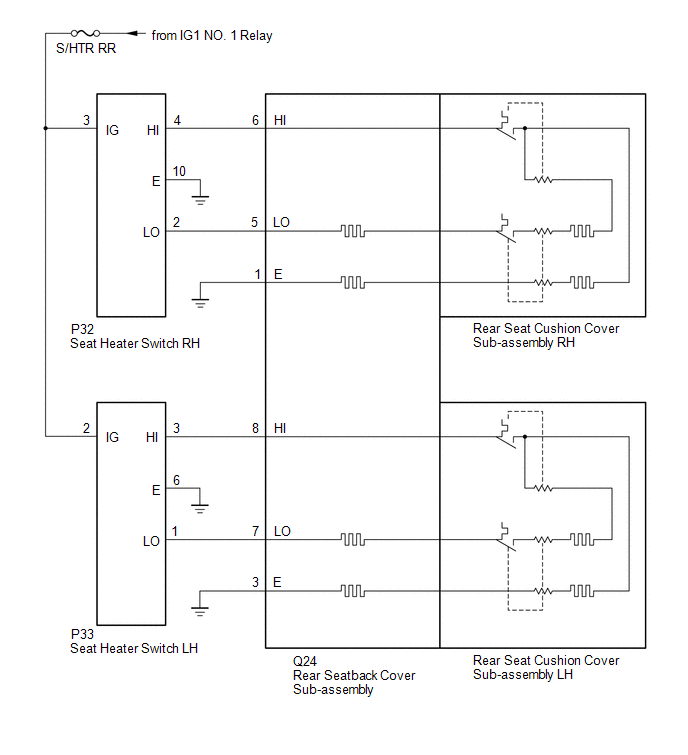

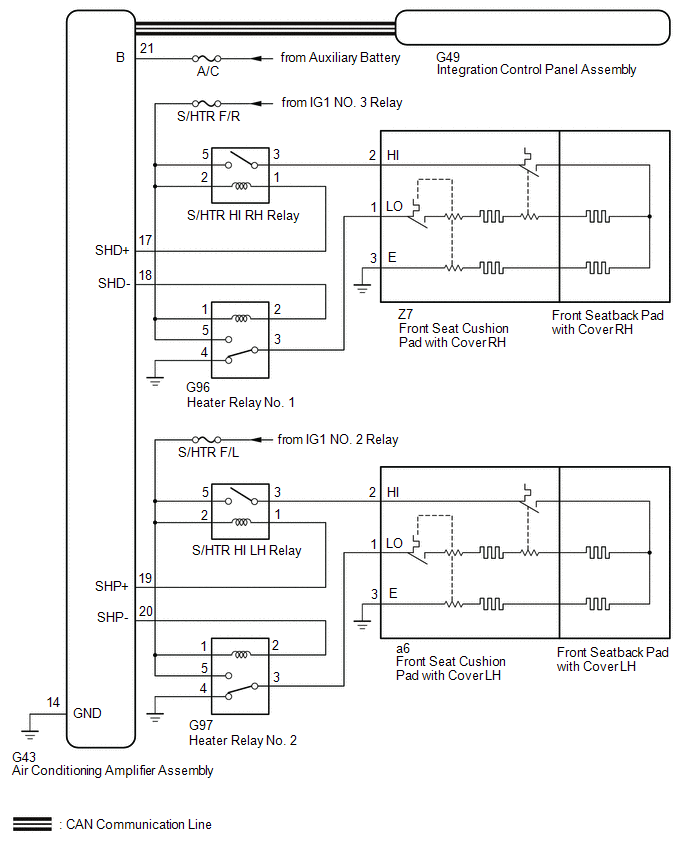

Home >> Toyota >> 2020 >> Mirai >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Seat Heater System - Diagnostics & Symptom Tests >> Seat Heater System >> System Diagram [06/2015 - ] >> System Diagram [06/2015 - ]
