Removal [06/2015 - ]: Procedure

  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the room light lens as shown in the illustration.

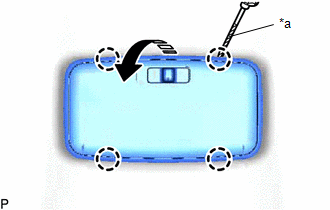

      GTY577342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.

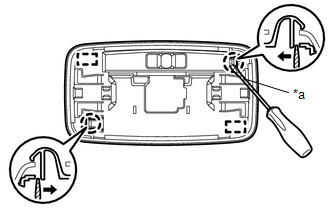

      GTY586121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Push
    3. Disengage the hooks to remove the No. 1 room light assembly.
    4. Disengage the claws and guide to separate the room light housing.

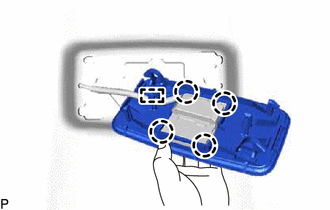

      GTY582995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 ROOM LIGHT BULB
    1. Remove the No. 1 room light bulb.
      GTY607463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
