Replacement [06/2015 - ]: Procedure

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

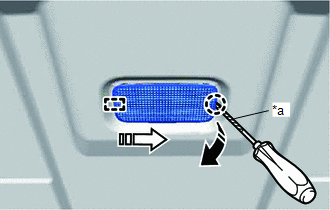

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw and guide as shown in the illustration.
      GTY552458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)

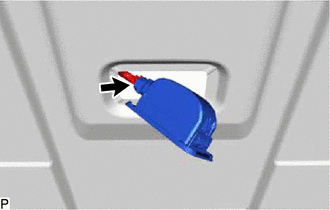

    2. Disconnect the connector to remove the No. 1 luggage compartment light assembly.
      GTY582990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT LIGHT BULB

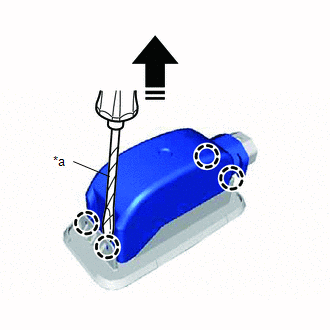

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the luggage compartment light cover as shown in the illustration.
      GTY575937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Remove the luggage compartment light bulb as shown in the illustration.
      GTY603493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. INSTALL LUGGAGE COMPARTMENT LIGHT BULB
    1. Install the luggage compartment light bulb as shown in the illustration.
      GTY557418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

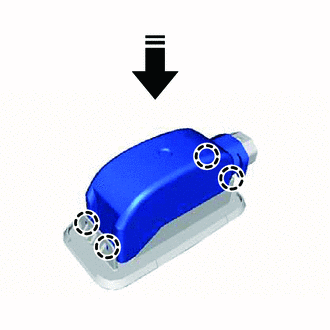

    2. Install the luggage compartment light cover as shown in the illustration.
      GTY545230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    1. Connect the connector to remove the No. 1 luggage compartment light assembly.
      GTY582990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

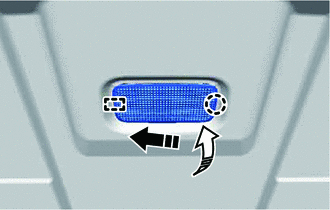

    2. Engage the guide and claw to install the No. 1 luggage compartment light assembly as shown in the illustration.
      GTY604789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
