Components [01/2018 - ]
Components [01/2018 - ]

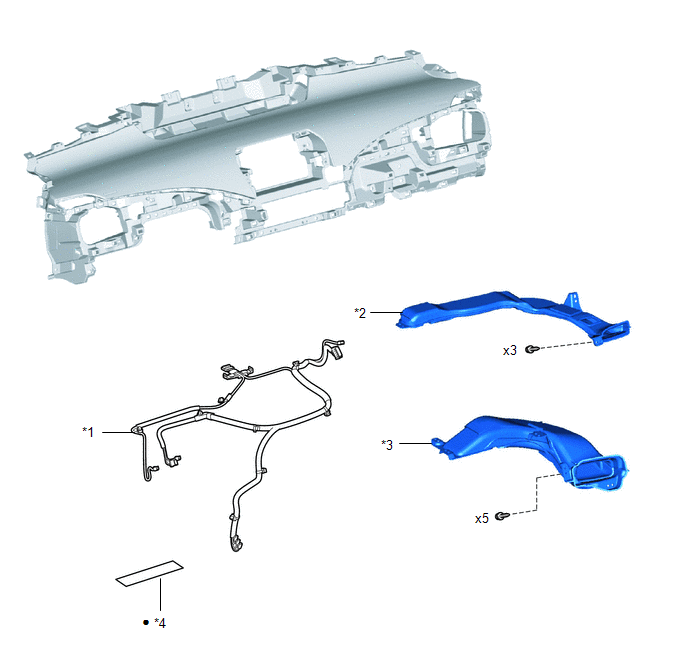

Fig 1: Antenna Cord Replacement Components [01/2018 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
ANTENNA CORD SUB-ASSEMBLY
*2
NO. 1 SIDE DEFROSTER NOZZLE DUCT
*3
NO. 3 HEATER TO REGISTER DUCT
*4
NO. 4 INSTRUMENT PANEL CUSHION
•
Non-reusable part
-
-
