Parts Location [06/2015 - 01/2018]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

NO. 1 MOTOR COMPARTMENT RELAY BLOCK - RADIO NO. 2 FUSE

-

-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

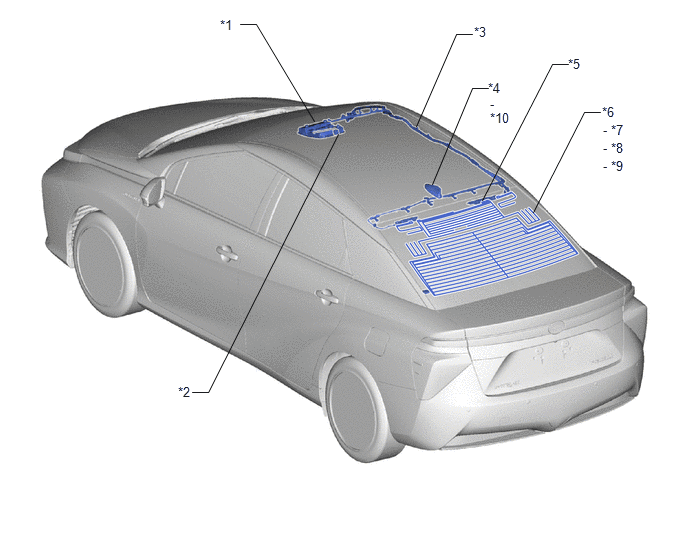

*1	MAP LIGHT ASSEMBLY	*2	TELEPHONE MICROPHONE ASSEMBLY
*3	NO. 2 ANTENNA CORD SUB-ASSEMBLY	*4	TELEPHONE ANTENNA ASSEMBLY
*5	NO. 1 AMPLIFIER ANTENNA ASSEMBLY	*6	WINDOW GLASS ANTENNA WIRE
*7	AM	*8	FM MAIN
*9	FM SUB	*10	SDARS

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

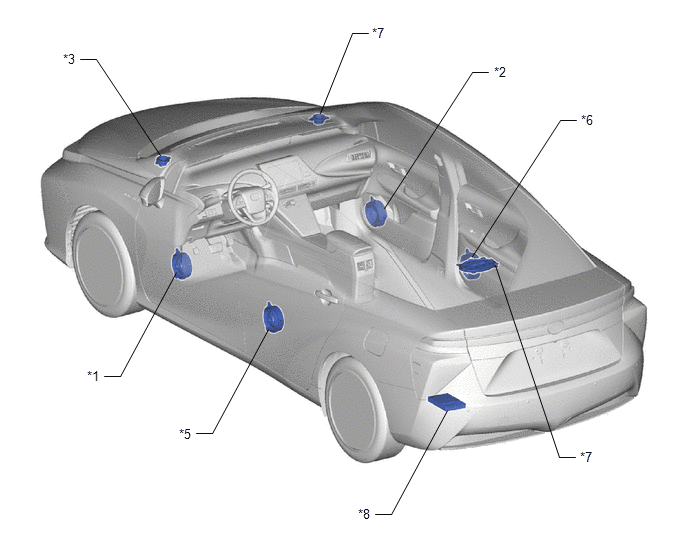

*1	FRONT NO. 1 SPEAKER ASSEMBLY LH	*2	FRONT NO. 1 SPEAKER ASSEMBLY RH
*3	FRONT NO. 2 SPEAKER ASSEMBLY LH	*4	FRONT NO. 2 SPEAKER ASSEMBLY RH
*5	REAR SPEAKER ASSEMBLY LH	*6	REAR SPEAKER ASSEMBLY RH
*7	REAR NO. 2 SPEAKER ASSEMBLY	*8	STEREO COMPONENT AMPLIFIER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	PARKING BRAKE SWITCH ASSEMBLY	*2	NAVIGATION ANTENNA ASSEMBLY - GPS
*3	ANTENNA CORD SUB-ASSEMBLY	*4	DLC
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE - PANEL FUSE - AMP NO. 1 FUSE - AMP NO. 2 FUSE - TAIL RELAY	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

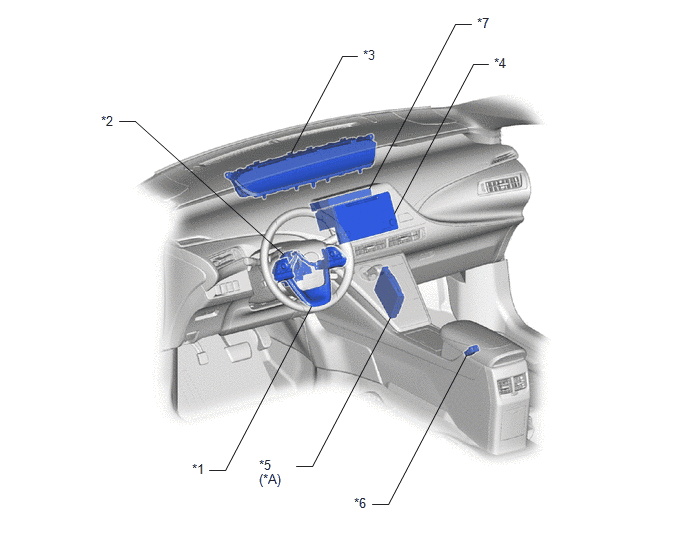

*A	w/ Manual (SOS) Switch	-	-
*1	STEERING PAD SWITCH ASSEMBLY	*2	SPIRAL CABLE SUB-ASSEMBLY
*3	COMBINATION METER ASSEMBLY	*4	NAVIGATION RECEIVER ASSEMBLY - DISC PLAYER DISC
*5	DCM (TELEMATICS TRANSCEIVER)	*6	NO. 1 STEREO JACK ADAPTER ASSEMBLY
*7	STEREO COMPONENT TUNER ASSEMBLY	-	-
