Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [06/2015 - 11/2018]

  2. REMOVE TELEPHONE ANTENNA ASSEMBLY
    1. Disconnect the connector.
      GTY600479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the washer and holder.
      GTY551930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the telephone antenna assembly with antenna outer cover.

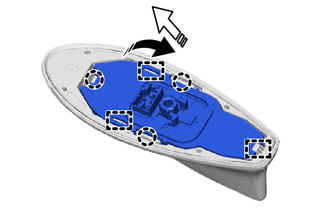

    4. Disengage the claws and guides to remove the telephone antenna assembly from the antenna outer cover as shown in the illustration.
      GTY606745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    5. When reusing the telephone antenna assembly:
      GTY572242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the seal.
