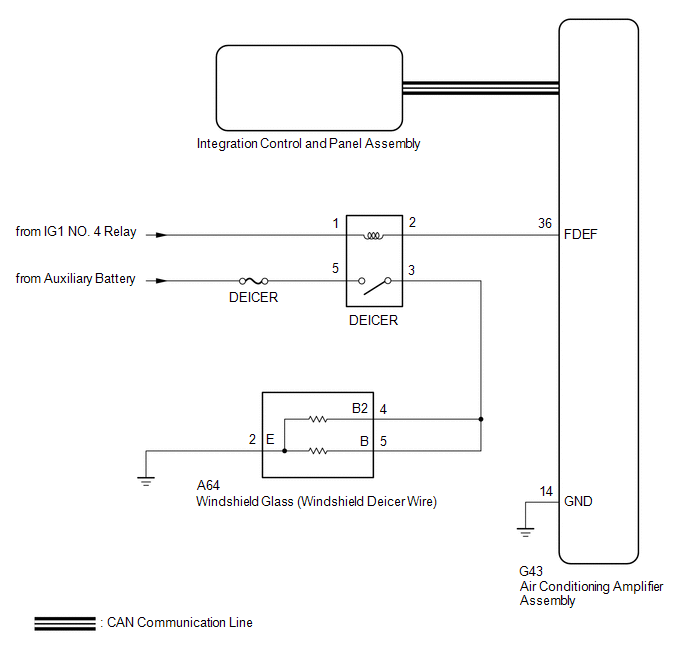

System Diagram [06/2015 - ]

GTY589423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitter Receiver Signal Communication Method
Integration Control and Panel Assembly Air Conditioning Amplifier Assembly Windshield deicer switch signal CAN
