Removal [06/2015 - ]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 4 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 4 [11/2018 - ]

  2. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 5 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 5 [11/2018 - ]

  3. REMOVE FRONT NO. 1 DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 6 [11/2018 - ]

  4. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 7 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 7 [11/2018 - ]

  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 8 [11/2018 - ]

  6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the cone part of front No. 1 speaker assembly.

    1. Disconnect the connector.

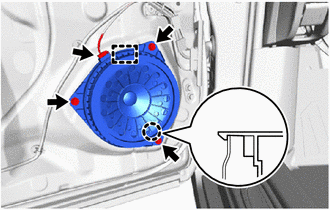

      GTY556789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws.
    3. Disengage the claw and guide to remove the front No. 1 speaker assembly.
