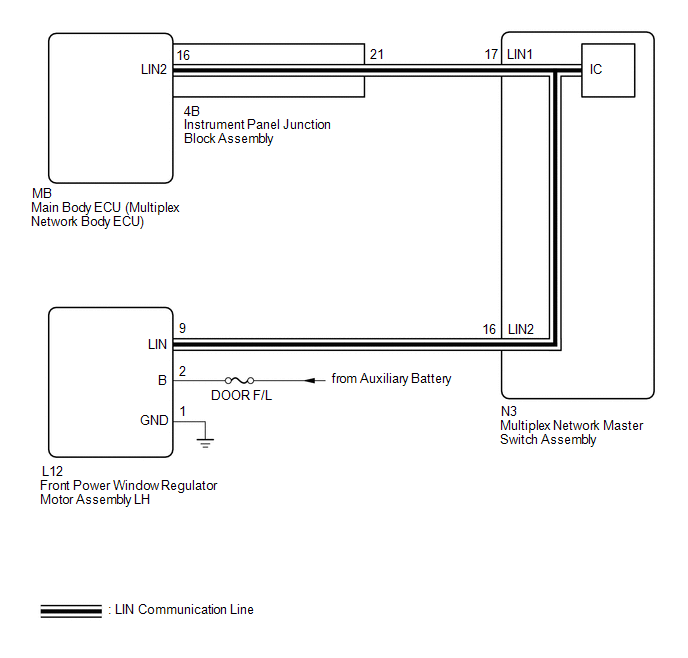

DTC B2321: Driver Side Door ECU Communication Stop [06/2015 - ]: Wiring Diagram

GTY545545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
