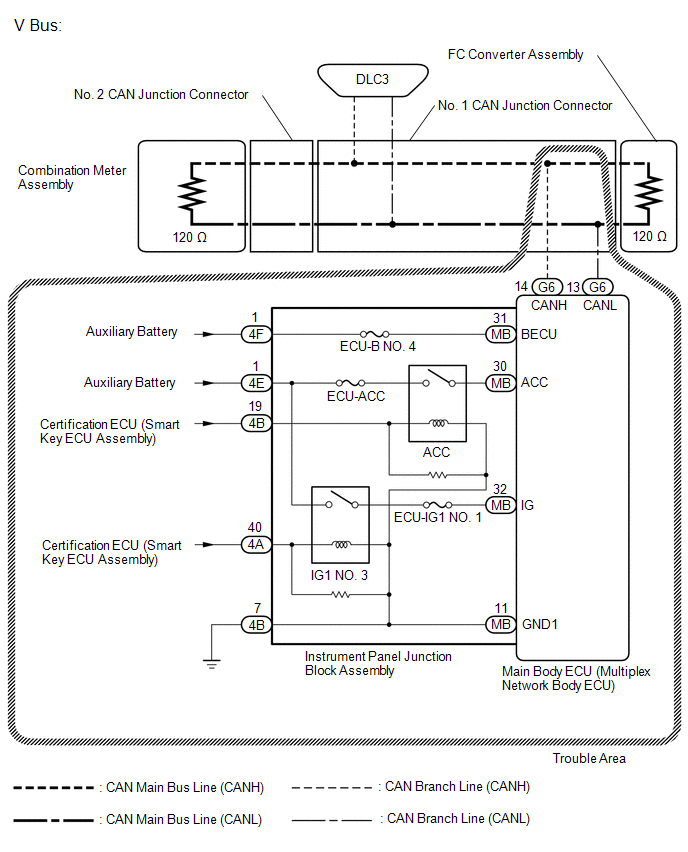

Main Body ECU Communication Stop Mode [06/2015 - 11/2018]: Wiring Diagram

GTY568194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
