Can Communication System
>>
DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [11/2018 - ]
>>

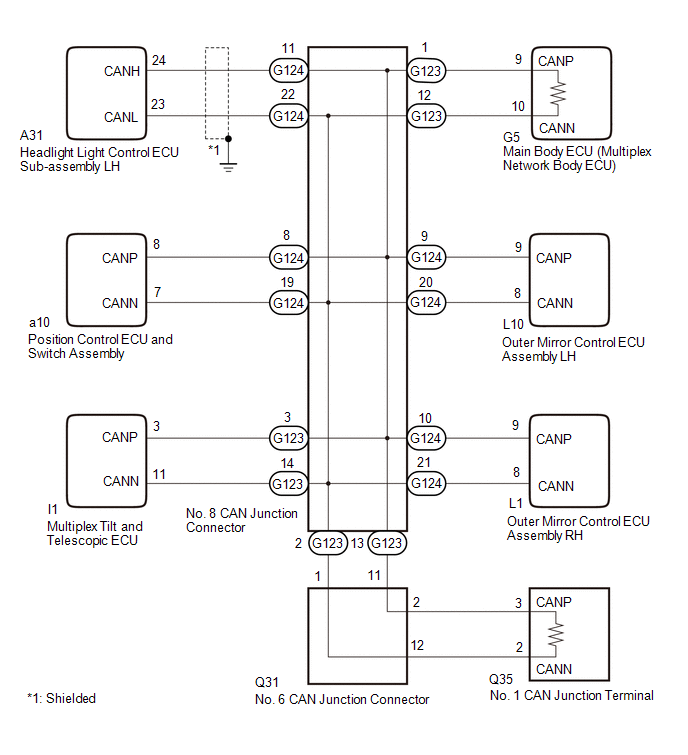

Wiring Diagram
DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [11/2018 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
