DTC U0199: Lost Communication with "Door Control Module A" [06/2015 - 11/2018]
>>

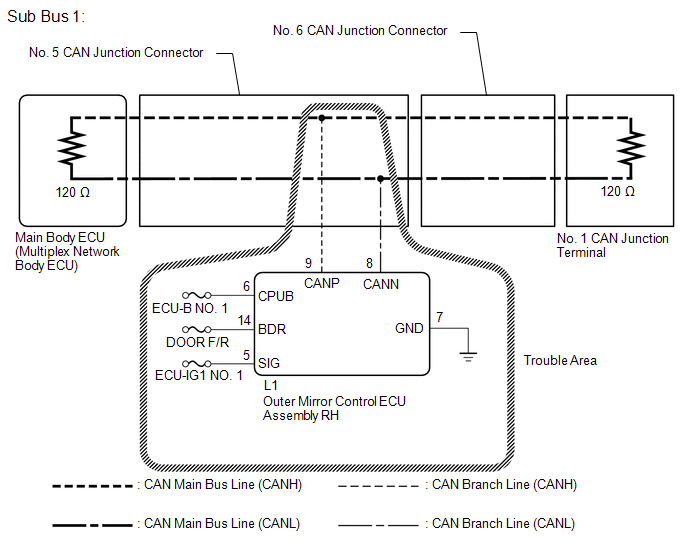

Wiring Diagram
DTC U0199: Lost Communication with "Door Control Module A" [06/2015 - 11/2018]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
