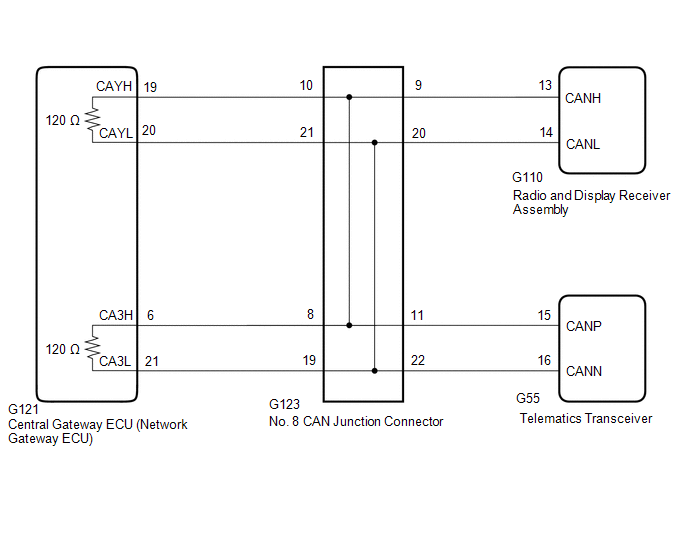

Check Bus 3 Lines for Short Circuit [11/2018 - ]: Wiring Diagram

GTY879471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
