Theft Deterrent System - Service Information
>>
ELECTRICAL KEY OSCILLATOR (for Rear Floor)
>>
Components [06/2015 - ]
Components [06/2015 - ]

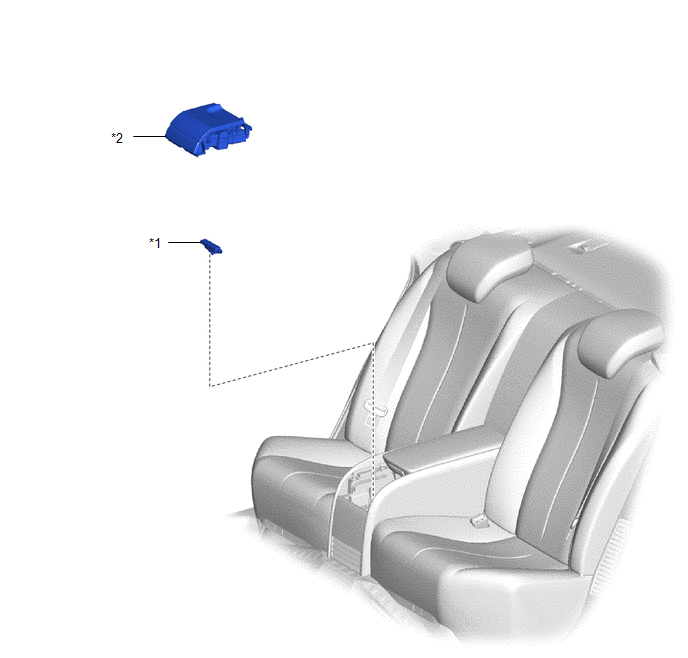

Fig 1: Electrical Key Oscillator (For Rear Floor) Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
*2
UPPER CONSOLE PANEL SUB-ASSEMBLY
