Meter / Gauge / Display - Diagnostics - Introduction (1 Of 2)
>>
Meter / Gauge System
>>
System Diagram [08/2017 - ]
>>
System Diagram [08/2017 - ]
System Diagram [08/2017 - ]

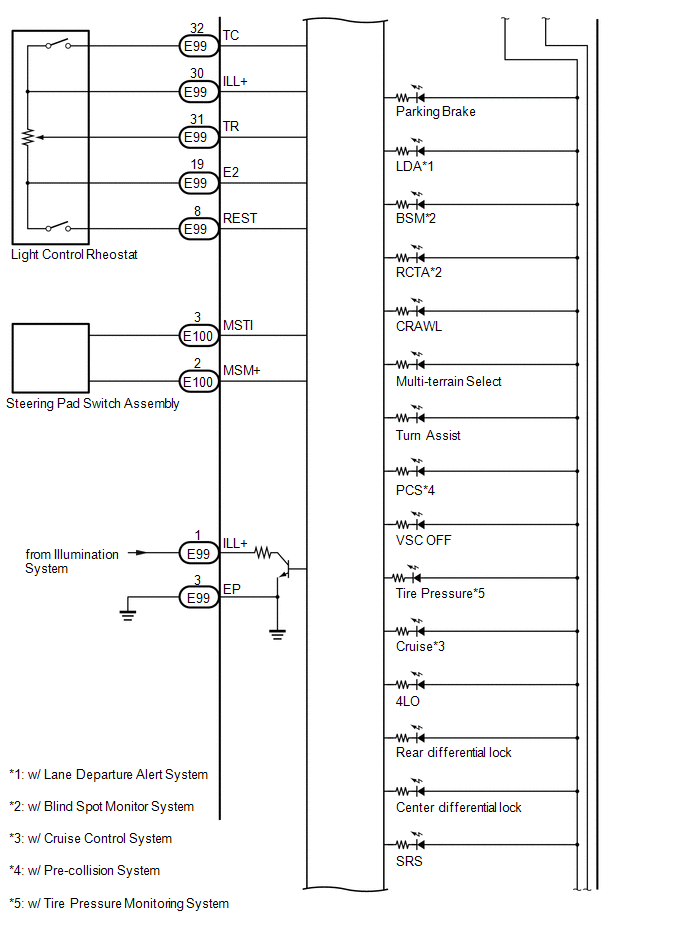

Fig 1: Meter / Gauge System Diagram, 08/2017- (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

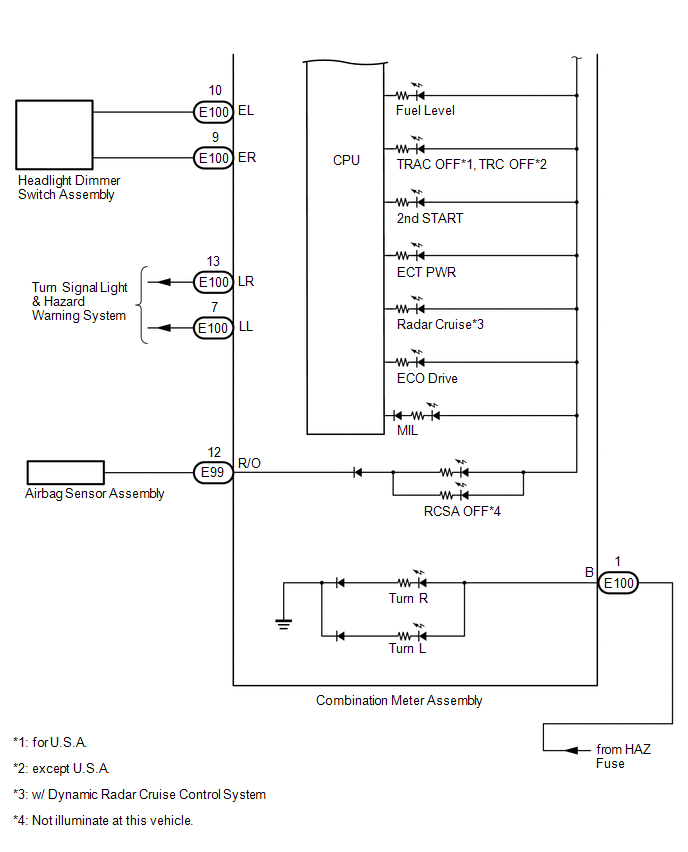

Fig 2: Meter / Gauge System Diagram, 08/2017- (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

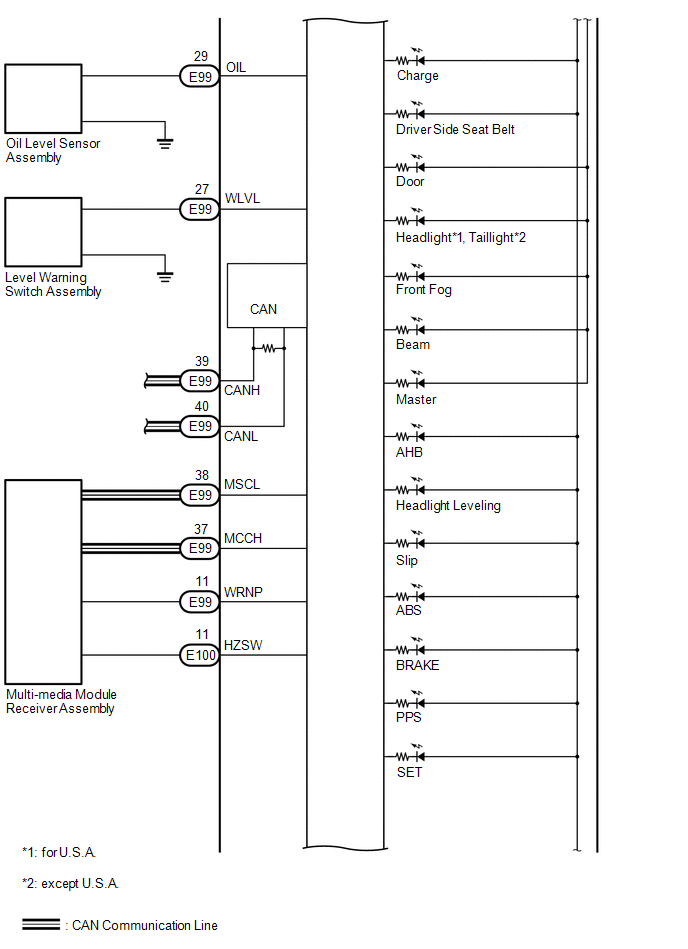

Fig 3: Meter / Gauge System Diagram, 08/2017- (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

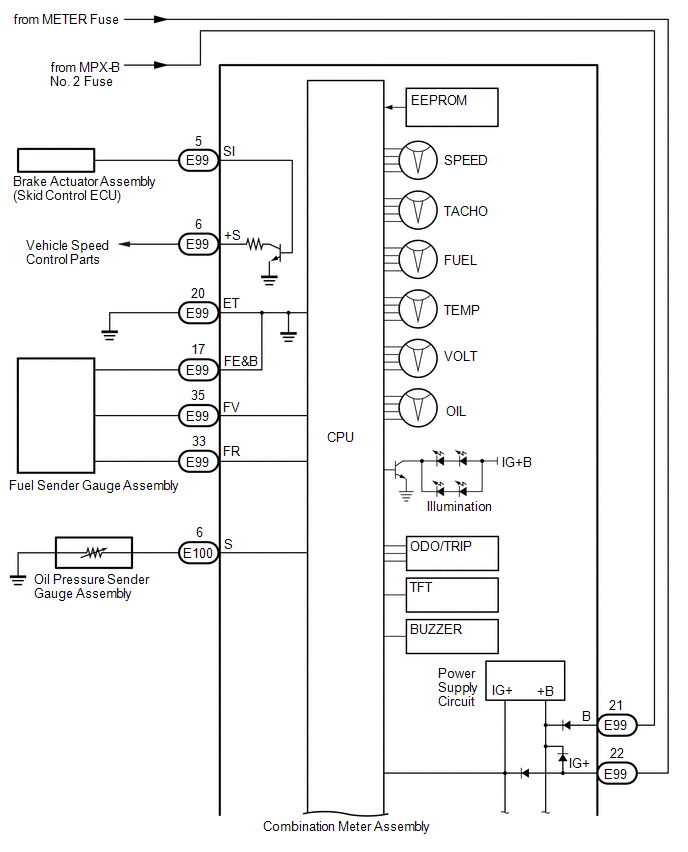

Fig 4: Meter / Gauge System Diagram, 08/2017- (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
