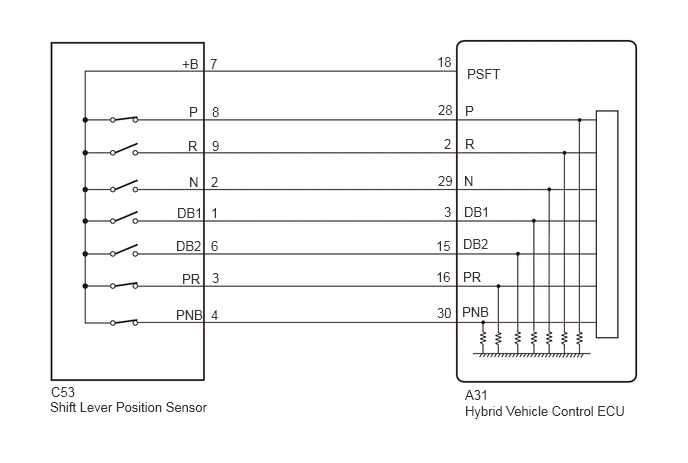

DTC P0705-62: Transmission Range Sensor "A" Circuit (PRNDL Input) Signal Compare Failure [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY881657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
