Section 63 (Hybrid Control System (AWD) - Circuit Tests (2 Of 2))
>>
HYBRID CONTROL SYSTEM (for AWD)
>>
Generator Resolver Circuit [12/2019 - 11/2023]
>>
Wiring Diagram

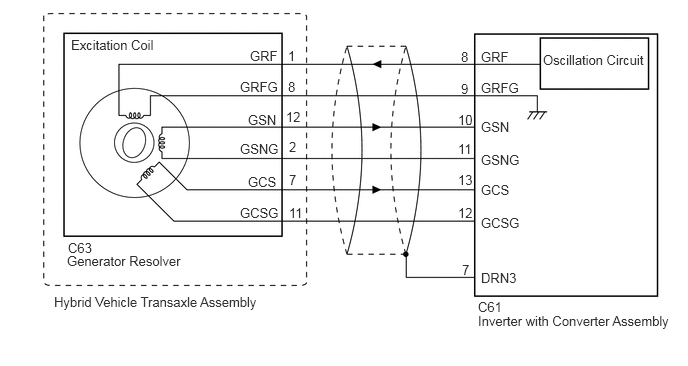

Generator Resolver Circuit [12/2019 - 11/2023]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
