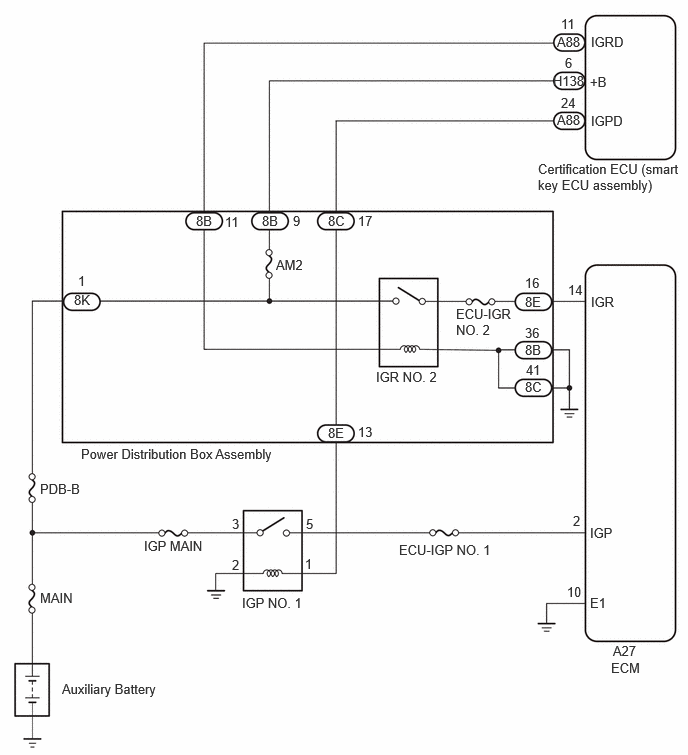

DTC P2533-14: Ignition Switch On/Start Position Circuit Low Circuit Short to Ground or Open [11/2023 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1180794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
