Components [12/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Oil Pressure And Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

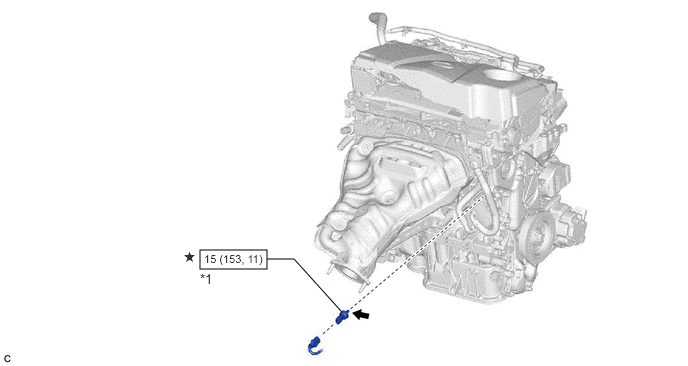

Fig 2: Oil Pressure And Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OIL PRESSURE AND TEMPERATURE SENSOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Adhesive 1344 | ||
| * | Precoated part | - | - |
