Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Oil Pan And Oil Level Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

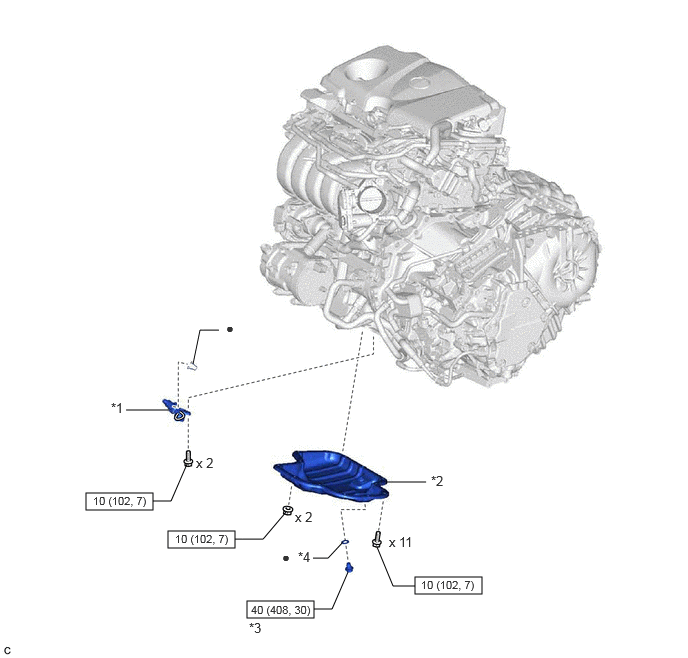

Fig 2: Oil Pan And Oil Level Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
*3	OIL PAN DRAIN PLUG	*4	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
