Components [10/2022 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Transfer Oil Replacement Components With Torque Specifications [10/2022 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

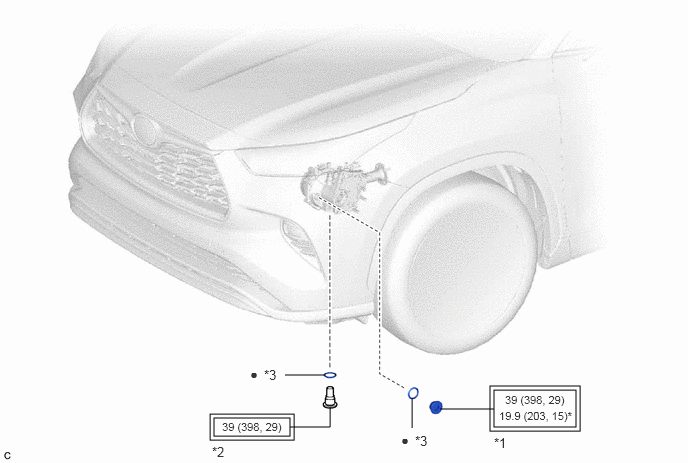

Fig 2: Transfer Oil Replacement Components With Torque Specifications [10/2022 - ] (2 Of 2)

Callout	Description	Callout	Description
*1	TRANSFER FILLER PLUG	*2	TRANSFER DRAIN PLUG
*3	GASKET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	*	For use with SST and a union nut wrench
•	Non-reusable part	-	-
