Components [10/2022 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
TRANSFER ASSEMBLY |
*2 |
REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY |
| *3 |
PROPELLER SHAFT HEAT INSULATOR |
*4 |
PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| * |
For use with SST and a union nut wrench |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CLUTCH CONTROL SOLENOID WIRE |
*2 |
WIRING HARNESS CLAMP BRACKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
TRANSFER AND TRANSAXLE SETTING STUD BOLT |
*2 |
TRANSFER CASE STRAIGHT PIN |
| *3 |
NO. 1 TRANSFER CASE PLUG |
*4 |
TRANSFER CASE OIL SEAL RH |
| *5 |
TRANSFER DRAIN PLUG |
*6 |
TRANSFER FILLER PLUG |
| *7 |
GASKET |
*8 |
NO. 1 4 WHEEL DRIVE POSITION SWITCH |
| *9 |
TRANSFER CASE BREATHER PLUG |
*10 |
TRANSFER CASE OIL SEAL |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
|
MP grease |
| * |
Precoated part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

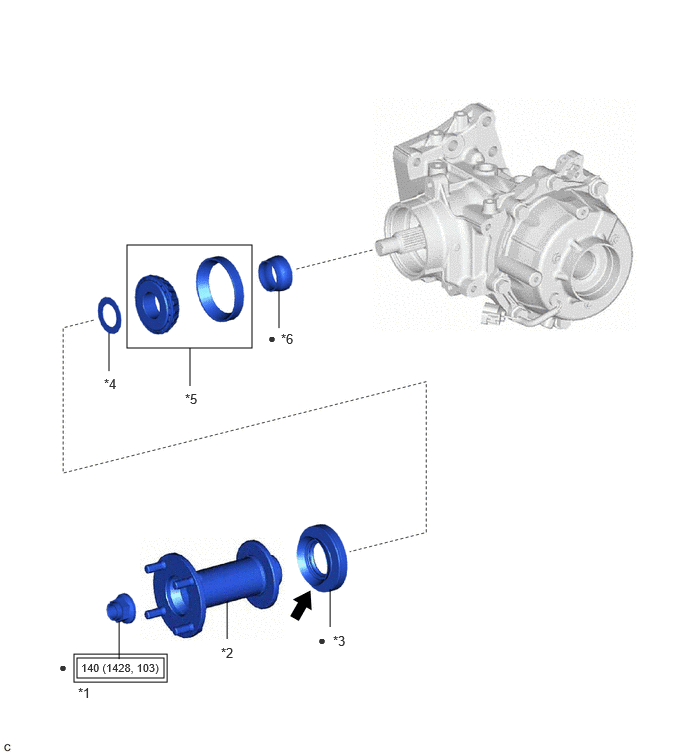

| *1 |
OUTPUT SHAFT COMPANION FLANGE NUT |
*2 |
TRANSFER OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY |
| *3 |
TRANSFER CASE OIL SEAL |
*4 |
SPACER |
| *5 |
REAR DRIVE PINION BEARING |
*6 |
TRANSFER PINION BEARING SPACER |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
• |
Non-reusable part |
|
MP grease |
- |
- |
