Components [10/2022 - ]
WARNING: This page is about a different variant/trim than selected.

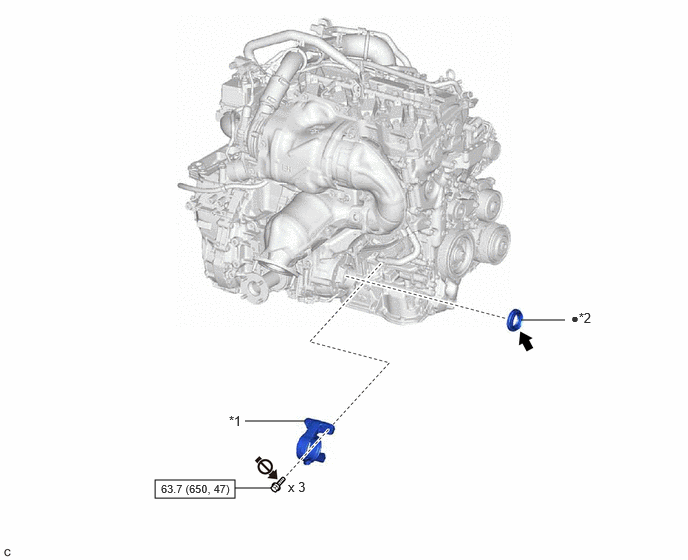

Fig 1: Transfer Case Front Oil Seal (For RH Side) Replacement Components With Torque Specifications [10/2022 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | TRANSFER CASE OIL SEAL RH |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | Do not apply lubricants to the threaded parts |
