Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

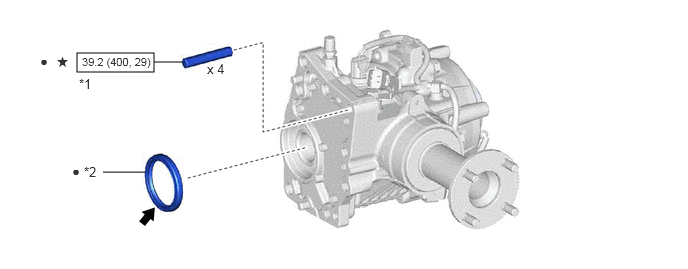

Fig 1: Transfer Case Front Oil Seal (For LH Side) Replacement Components With Torque Specifications
GTY921980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSFER AND TRANSAXLE SETTING STUD BOLT *2 TRANSFER CASE OIL SEAL
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
MP grease * Precoated part
