Parts Location [12/2019 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.
GTY891412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

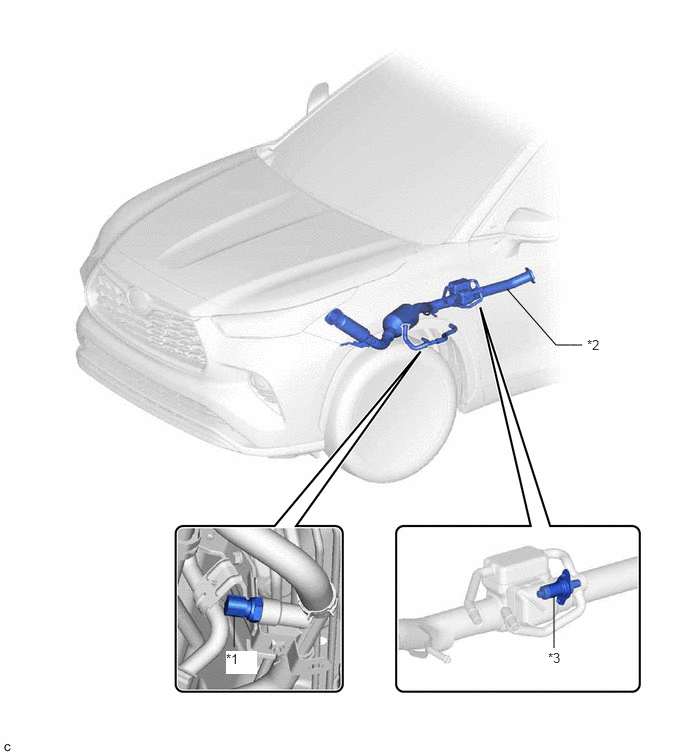

*1 TEMPERATURE SWITCH *2 FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
*3 EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY - -


GTY936576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

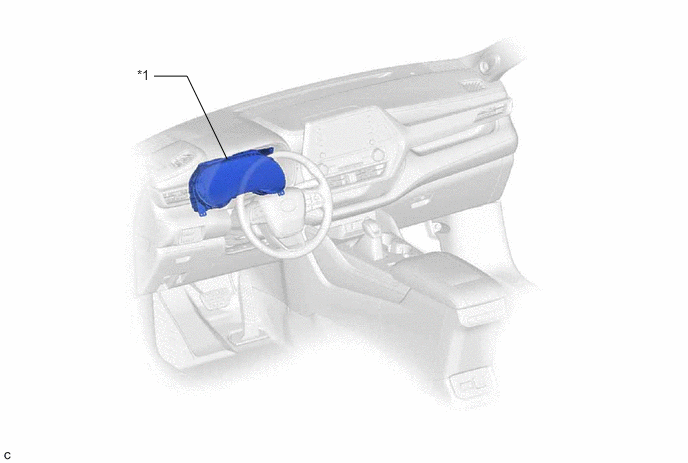

*1 COMBINATION METER ASSEMBLY - -
