Section 126 (Can Communication System (HV) - Circuit Tests (2 Of 9))
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
DCM Communication Stop Mode [12/2019 - 10/2022]
>>

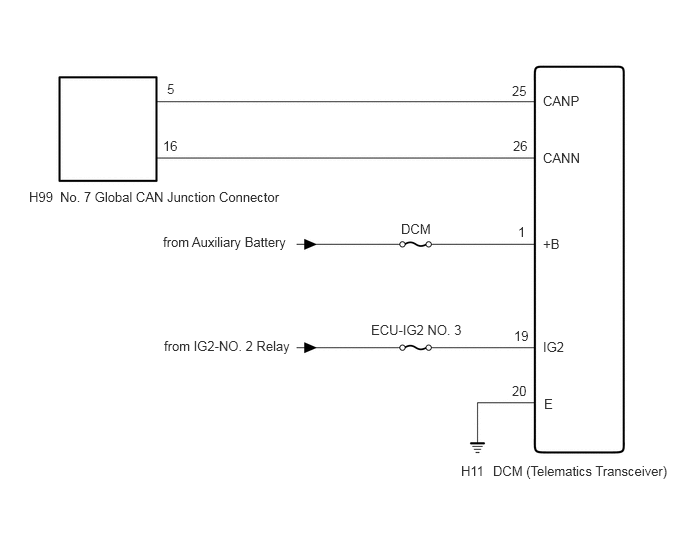

Wiring Diagram
DCM Communication Stop Mode [12/2019 - 10/2022]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
